Festo

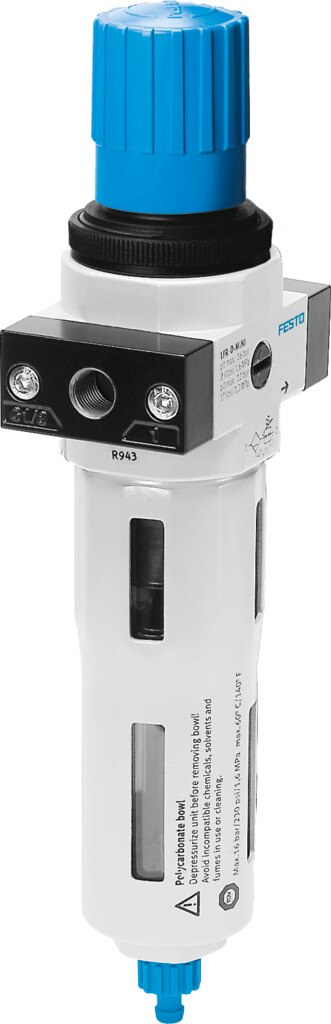

Festo LFR-1/2-D-5M-O-DI-MAXI-A Filter regulator
Part number192389EAN / GTIN4052568151256HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LFR-1/2-D-5M-O-DI-MAXI-A — Filter regulator, compressed air preparation. operating pressure 0.2. 1.2 MPa (2. 12 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 192389
- Type code
- LFR-1/2-D-5M-O-DI-MAXI-A
- EAN / GTIN
- 4052568151256
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Maxi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical +/-5°
- Grade of filtration
- 5 µm
- Condensate drain
- Fully automatic
- Design
- Filter regulator without pressure gauge
- Max. condensate volume
- 43 ml
- Bowl guard
- Metal bowl guard
- Symbol
- 00991588
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- Prepared for G1/4
- Operating pressure
- 0.2 ... 1.2 MPa (2 ... 12 bar)
- Pressure regulation range
- 0.5 ... 12 bar
- Max. pressure hysteresis
- 0.04 MPa (0.4 bar; 5.8 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 4000 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:9:-], Inert gas
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 ... 60 °C
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [6:8:4], Inert gas
- Media temperature
- 5 ... 60 °C
- Ambient temperature
- 5 ... 60 °C
- Product weight
- 1600 g
- Type of mounting
- Inline installation
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Material housing
- Die-cast zinc
- Material bowl
- Makrolon®
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/2"
- Press Area
- 0.5 to 12 bar
- Filter element
- 5 My
- Carbon footprint (EPD)
- 32.9486 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568151256
- MPN 192389
Product Documentation
Document preview: LFR-1/2-D-5M-O-DI-MAXI-A — Festo product documentation
More from Festo
Festo
Festo VUVS-L30-B52-ZD-G38-F8-1C1 Solenoid valve
575612
Festo
Festo DFM-63-50-P-A-KF Guided drive
170954
Festo
Festo LR-1-D-O-DI-MAXI Pressure regulator
192365
Festo
Festo CLR-63-20-G-P-A-K11-R8 Linear/swivel clamp
535507
Festo
Festo CPE18-PRS-EP End plate
164973
Festo
Festo HE-3-3/8-3/8 Shut-off valve
153298
Festo
Festo DSBC-63-200-PPSA-N3 ISO cylinder
1383639
Festo
Festo NPQR-Y-Q10-E Push-in Y-connector
8085726
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
