Festo JMVH-5-3/8-S-B Solenoid valve
Part number4052568112745Item number10525117EAN / GTIN4052568112745HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo JMVH-5-3/8-S-B — Solenoid valve, valves and valve terminals. valve function 5/2-way, double solenoid; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 12 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 15343
- Type code
- JMVH-5-3/8-S-B
- EAN / GTIN
- 4052568112745
- Product category
- Valves and valve terminals
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Construction width
- 40 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 2000 l/min
- pneumatic working port
- G3/8
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Nominal size
- 12 mm
- Grid dimension
- 41 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible

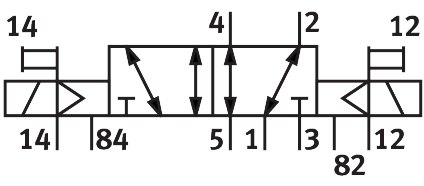

- Symbol
- 00991016
- lap
- Overlap
- Pilot pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Max. switching frequency
- 3 Hz
- Switching time reversal
- 17 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Characteristic coil data
- 24 V DC: 2.5 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -5 ... 50 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 900 g
- Type of mounting
- On PR rail, with through-hole
- Auxiliary pilot air port 12
- G1/8
- Auxiliary pilot air port 14
- G1/8
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Pneumatic connection, port 3
- G3/8
- Pneumatic connection, port 4
- G3/8
- Pneumatic connection, port 5
- G3/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G3/8"
- Activation
- El
- Return
- Air
- Carbon footprint (EPD)
- 16.9216 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568112745
- MPN 15343
Product Documentation
Document preview: JMVH-5-3/8-S-B — Festo product documentation
More from Festo
Festo
Festo VUVS-LK20-M32C-AD-G18-1C1+GL-S Solenoid valve
8060299
Festo
Festo CPV10-M1H-2X3-GLS-M7 Solenoid valve
161416
Festo

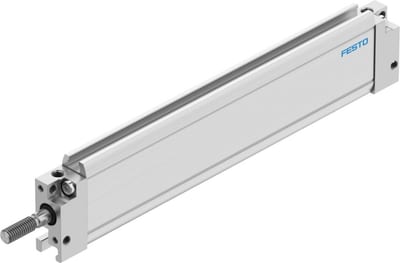

Festo DZF-12-125-A-P-A Flat cylinder
161230
Festo

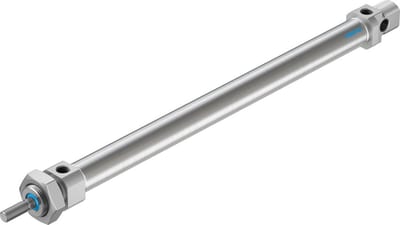

Festo DSNU-20-250-PPS-A ISO cylinder
559279
Festo

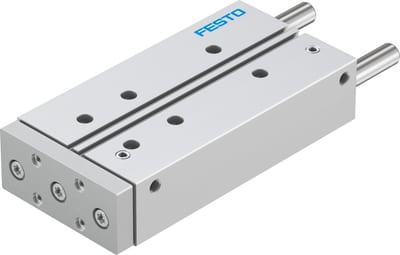

Festo DFM-32-160-P-A-KF Guided drive
