Festo MFH-5/3B-1/8-B Solenoid valve
Part number30485EAN / GTIN4052568113674HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MFH-5/3B-1/8-B — Solenoid valve, valves and valve terminals. valve function 5/3-way, pressurised; operating pressure 0.3. 1 MPa (3. 10 bar); nominal size 8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 30485
- Type code
- MFH-5/3B-1/8-B
- EAN / GTIN
- 4052568113674
- Product category
- Valves and valve terminals
- Valve function
- 5/3-way, pressurised
- Type of actuation
- Electrical
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1000 l/min
- pneumatic working port
- G1/8
- Operating pressure
- 0.3 ... 1 MPa (3 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Nominal size
- 8 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991034
- lap
- Overlap
- Max. switching frequency
- 3 Hz
- Switching time off
- 21 ms
- Switching time on
- 23 ms
- Switching time reversal
- 16 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 400 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On PR rail, with through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 7.8359 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568113674
- MPN 30485
Product Documentation
Document preview: MFH-5/3B-1/8-B — Festo product documentation
More from Festo
Festo
Festo DNC-32-80-PPV ISO cylinder
163322
Festo

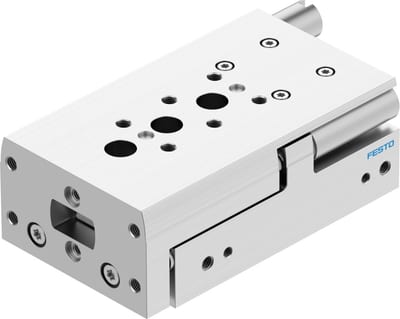

Festo DGST-16-50-Y12A Mini slide
8085178
Festo
Festo LR-1/8-D-7-O-MINI Pressure regulator
162598
Festo
Festo LRS-3/4-D-7-O-MAXI Pressure regulator
194663
Festo

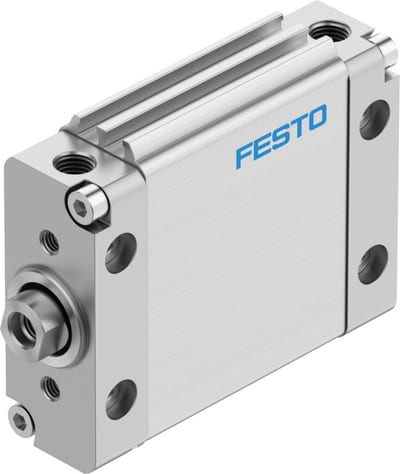

Festo DZF-40-25-P-A Flat cylinder
