Festo
Festo LR-1/8-D-7-O-MINI Pressure regulator
Part number162598EAN / GTIN4052568072247HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LR-1/8-D-7-O-MINI — Pressure regulator, compressed air preparation. operating pressure 0.1. 1.6 MPa (1. 16 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 162598
- Type code
- LR-1/8-D-7-O-MINI
- EAN / GTIN
- 4052568072247
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Mini
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Any
- Design
- Directly actuated diaphragm regulator
- Controller function
- Output pressure constant, with primary pressure compensation, with secondary exhausting
- Symbol
- 00991540
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- Prepared for G1/8
- Operating pressure
- 0.1 ... 1.6 MPa (1 ... 16 bar)
- Pressure regulation range
- 0.5 ... 7 bar
- Max. pressure hysteresis
- 0.02 MPa (0.2 bar; 2.9 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 1000 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 300 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Material sub-base
- Die-cast zinc
- Material seals
- NBR
- Material housing
- Die-cast zinc
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/8"
- Press Area
- 0.5 to 7 bar
- Carbon footprint (EPD)
- 2.8471 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811099
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568072247
- MPN 162598
Product Documentation
Document preview: LR-1/8-D-7-O-MINI — Festo product documentation
More from Festo
Festo
Festo LRS-3/4-D-7-O-MAXI Pressure regulator
194663
Festo
Festo DZF-40-25-P-A Flat cylinder
164054
Festo
Festo ADN-16-50-A-P-A Compact cylinder
536331
Festo
Festo LRS-1/2-D-7-O-MAXI Pressure regulator
194661
Festo
Festo ADVUL-12-20-P-A Compact cylinder
156847
Festo

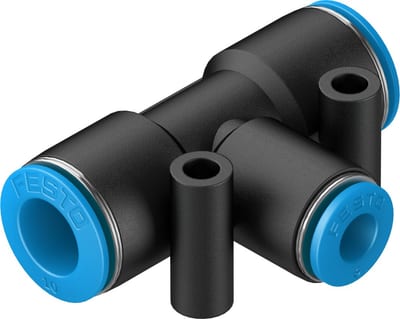

Festo QST-10-6 Push-in T-connector
130614
Festo

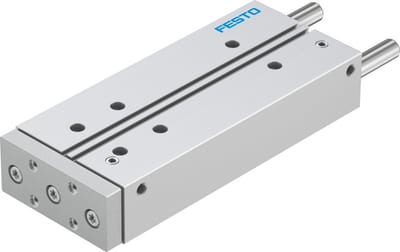

Festo DFM-32-200-P-A-KF Guided drive
