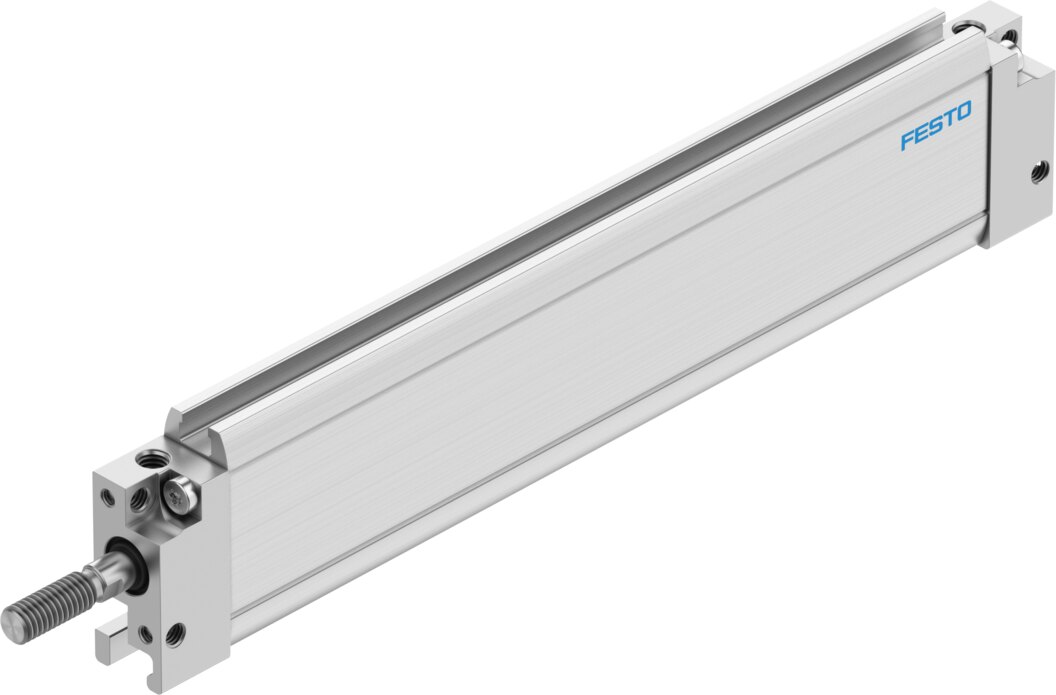

Festo DZF-12-125-A-P-A Flat cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DZF-12-125-A-P-A — Flat cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 125 mm; piston diameter 12 mm, Equivalent diameter; operating pressure 0.16. 1 MPa (1.6. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 161230
- Type code
- DZF-12-125-A-P-A
- EAN / GTIN
- 4052568128548
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 125 mm
- Piston diameter
- 12 mm, Equivalent diameter
- Piston rod thread
- M6
- Torsional backlash at piston rod +/-
- 2.5 deg
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Design
- Piston, Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Protection against torque/guide
- Oval piston
- Operating pressure
- 0.16 ... 1 MPa (1.6 ... 10 bar)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.09 J
- Max. torque for protection against torsion
- 0.1 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 51 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 68 N
- Moving mass for 0 mm stroke
- 12 g
- Additional moving mass per 10 mm stroke
- 2 g
- Additional weight per 10 mm stroke
- 9 g
- Basic weight for 0 mm stroke
- 96 g
- Type of mounting
- With female thread, with accessories
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR, TPE-U(PU)
- Material housing
- Anodised wrought aluminium alloy
- Material piston seal
- NBR
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatics VDMA air cylinder
- Product group
- Pneumatics
- Diameter
- 12 mm
- Carbon footprint (EPD)
- 3.8443 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568128548
- MPN 161230
