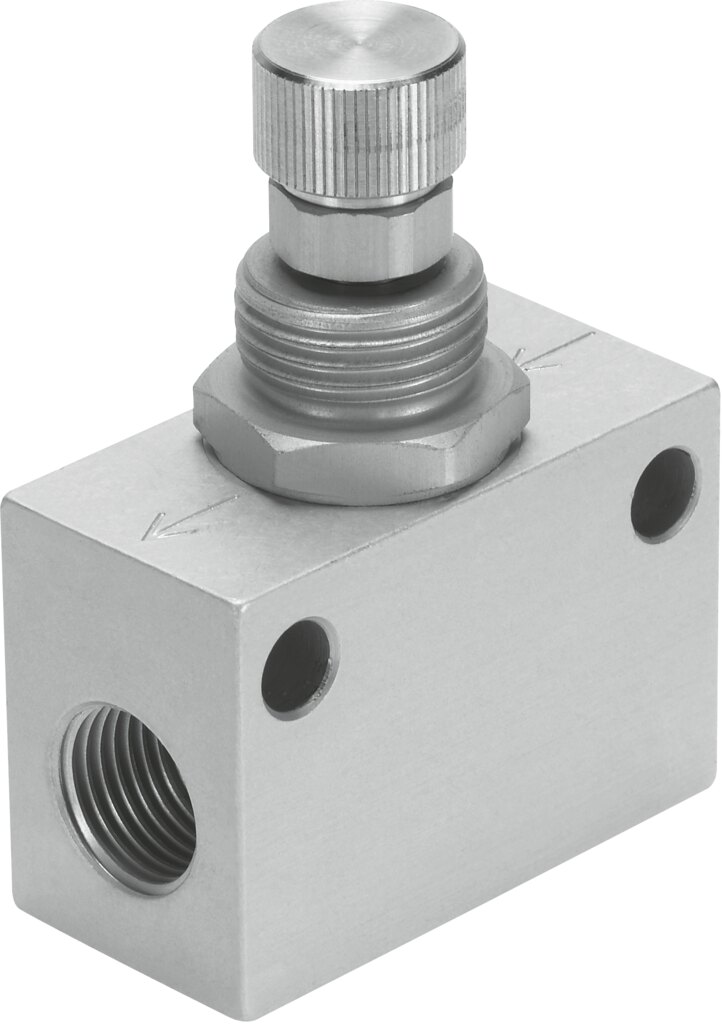

Festo GR-1/8-B One-way flow control valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo GR-1/8-B — One-way flow control valve, one-way check valves. valve function One-way flow control function; operating pressure 0.5. 10 bar; nominal size 3 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 151215
- Type code
- GR-1/8-B
- EAN / GTIN
- 4052568010690
- Product category
- One-way check valves
- Valve function
- One-way flow control function
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Adjustment component
- Knurled screw
- Type of mounting
- With through-hole
- Standard nominal flow rate in flow control direction
- 210 l/min
- Standard nominal flow rate in blocked direction
- 180 ... 275 l/min
- Operating pressure
- 0.5 ... 10 bar
- Ambient temperature
- -20 ... 60 °C
- Material housing
- Wrought aluminium alloy
- Explosion protection
- The information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
- Mounting position
- Any
- Symbol
- 00991453
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -20 ... 60 °C
- Nominal size
- 3 mm
- Product weight
- 31 g
- Material seals
- NBR
- Material sleeve
- POM
- Material adjusting screw
- High-alloy steel
- Material nut
- Wrought aluminium alloy
- Product type
- Pneumatic flow valves
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 0.3262 kg CO2e per pcs
- Country of origin
- India
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
