Festo

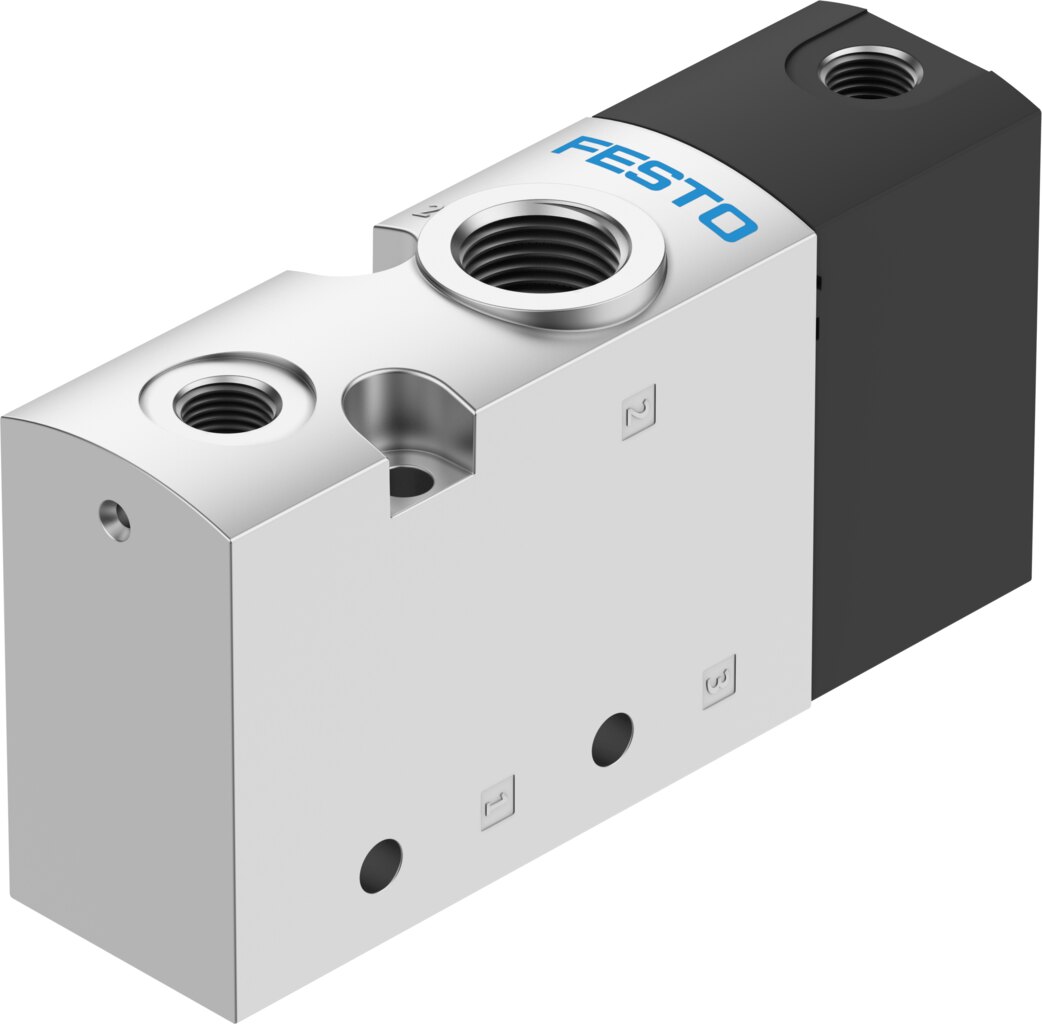

Festo VUWS-L30-M32C-E-G38 Pneumatic valve
Part number575577EAN / GTIN4052568261146HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUWS-L30-M32C-E-G38 — Pneumatic valve, universal directional control valves. valve function 3/2-way, single solenoid, closed; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 9.4 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 575577
- Type code
- VUWS-L30-M32C-E-G38
- EAN / GTIN
- 4052568261146
- Product category
- Universal directional control valves
- Valve function
- 3/2-way, single solenoid, closed
- Type of actuation
- Pneumatic
- Valve size
- 31 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 2300 l/min
- pneumatic working port
- G3/8
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Pneumatic spring
- Approval
- c UL us - Recognised (Oil)
- Nominal size
- 9.4 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of piloting
- Direct
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00995401
- lap
- Overlap
- Pilot pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- Switching time off
- 40 ms
- Switching time on
- 21 ms
- Explosion protection
- The information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 394 g
- Type of mounting
- On manifold rail, with through-hole
- Breather connection
- Not ducted
- Pneumatic spring connection 10
- G1/8
- Pilot air port 12
- G1/8
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Pneumatic connection, port 3
- G3/8
- Material seals
- HNBR, NBR
- Material housing
- painted
- Material piston slide
- Wrought aluminium alloy
- Material screws
- Nickel-plated steel
- Product type
- Pneumatic Valves Air-Controlled
- Product group
- Pneumatics
- Thread
- G3/8"
- Activation
- Air
- Return
- Spring
- Carbon footprint (EPD)
- 8.2819 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568261146
- MPN 575577
Product Documentation
Document preview: VUWS-L30-M32C-E-G38 — Festo product documentation
