Festo

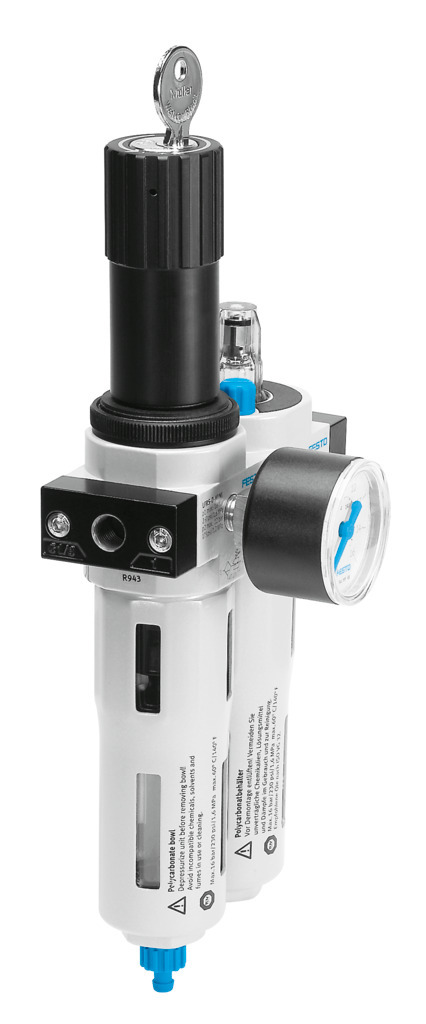

Festo FRCS-1/4-D-MIDI Service unit
Part number194888EAN / GTIN4052568156176HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo FRCS-1/4-D-MIDI — Service unit, compressed air preparation. operating pressure 0.1. 1.6 MPa (1. 16 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 194888
- Type code
- FRCS-1/4-D-MIDI
- EAN / GTIN
- 4052568156176
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with integrated lock
- Mounting position
- Vertical +/-5°
- Condensate drain
- Manual, rotating
- Design
- Proportional standard mist lubricator
- Max. condensate volume
- 43 ml
- Grade of filtration
- 40 µm
- Bowl guard
- Metal bowl guard
- Symbol
- 00991549
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.1 ... 1.6 MPa (1 ... 16 bar)
- Pressure regulation range
- 0.5 ... 12 bar
- Max. pressure hysteresis
- 0.02 MPa (0.2 bar; 2.9 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 1500 l/min
- Operating medium
- Inert gas
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:8:-], Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 1680 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Material housing
- Die-cast zinc
- Material bowl
- Makrolon®
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/4"
- Press Area
- 0.5 to 12 bar
- Filter element
- 40 My
- Carbon footprint (EPD)
- 37.4026 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568156176
- MPN 194888
Product Documentation
Document preview: FRCS-1/4-D-MIDI — Festo product documentation
