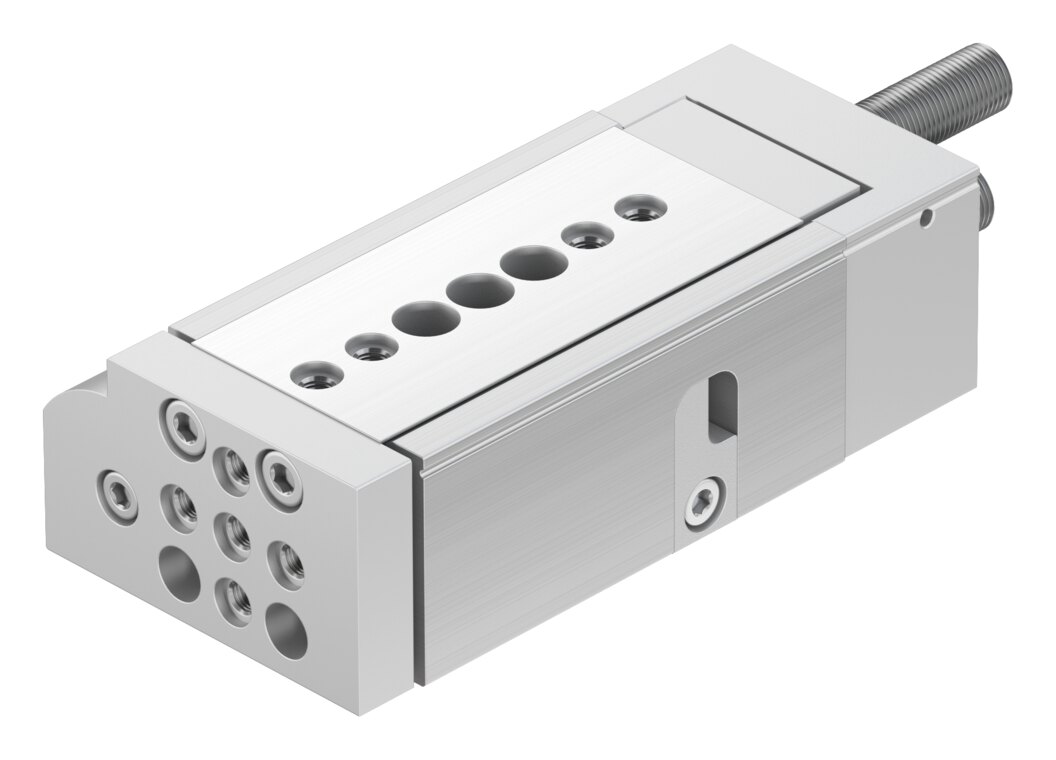

Festo DGSL-12-20-P1A Mini slide
Part number543970EAN / GTIN4052568183141HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGSL-12-20-P1A — Mini slide, drives with slides. stroke 20 mm; piston diameter 16 mm; operating pressure 0.1. 0.8 MPa (1. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 543970
- Type code
- DGSL-12-20-P1A
- EAN / GTIN
- 4052568183141
- Product category
- Drives with slides
- Stroke
- 20 mm
- Adjustable end position range/length front
- 29 mm
- Adjustable end position range/length rear
- 25.5 mm
- Piston diameter
- 16 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends with fixed stop
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Design
- Yoke, Piston, Piston rod, Slide
- Position detection
- Via proximity switch
- Symbol
- 00991263
- Operating pressure
- 0.1 ... 0.8 MPa (1 ... 8 bar)
- Max. speed
- 0.8 m/s
- Repetition accuracy
- ±0.01 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 ... 60 °C
- Impact energy in end positions
- 0.06 J
- Cushioning length
- 3.7 mm
- Max. force Fy
- 1006 N
- Max. force Fz
- 1006 N
- Max. moment Mx
- 15 Nm
- Max. moment My
- 9 Nm
- Max. moment Mz
- 9 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 104 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 121 N
- Moving mass
- 279 g
- Product weight
- 700 g
- alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 13.6117 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568183141
- MPN 543970
Product Documentation
Document preview: DGSL-12-20-P1A — Festo product documentation
