Festo FENG-80-500-KF Guide unit
Part number34528EAN / GTIN4052568009984HS code8412.90
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo FENG-80-500-KF — Guide unit, linear guides. stroke 500 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 34528
- Type code
- FENG-80-500-KF
- EAN / GTIN
- 4052568009984
- Product category
- Linear guides
- Size
- 80
- Stroke
- 500 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Guidance
- Explosion protection
- The information in the certificate must be observed!
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 ... 80 °C
- Max. force Fy
- 2300 N
- Max. force Fy static
- 3120 N
- Max. force Fz
- 2300 N
- Max. force Fz static
- 3120 N
- Max. moment Mx
- 170 Nm
- Max. torque Mx static
- 231 Nm
- Max. moment My
- 191 Nm
- Max. torque My static
- 259 Nm
- Max. moment Mz
- 191 Nm
- Max. torque Mz static
- 259 Nm
- Displacement force
- 40 N
- Product weight
- 14280 g
- Type of mounting
- With female thread
- Material guide component
- Tempered steel
- Material housing
- Anodised wrought aluminium alloy
- Material yoke plate
- Tempered steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 200.5768 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84129070
- HS code
- 8412.90
Standards & Compliance
- HS Code
- 8412.90
Cross References
- EAN 4052568009984
- MPN 34528
Product Documentation
Document preview: FENG-80-500-KF — Festo product documentation
More from Festo
Festo
Festo ADN-50-15-I-P-A Compact cylinder
536322
Festo
Festo ADN-25-30-I-PPS-A Compact cylinder
577178
Festo
Festo DSNU-8-30-P-A ISO cylinder
1908249
Festo

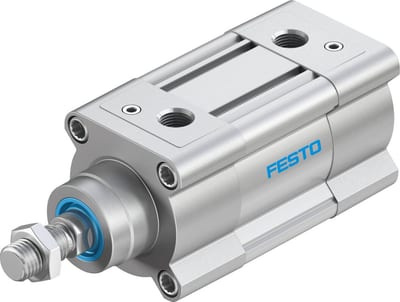

Festo DSBC-63-20-PPVA-N3 ISO cylinder
