Festo

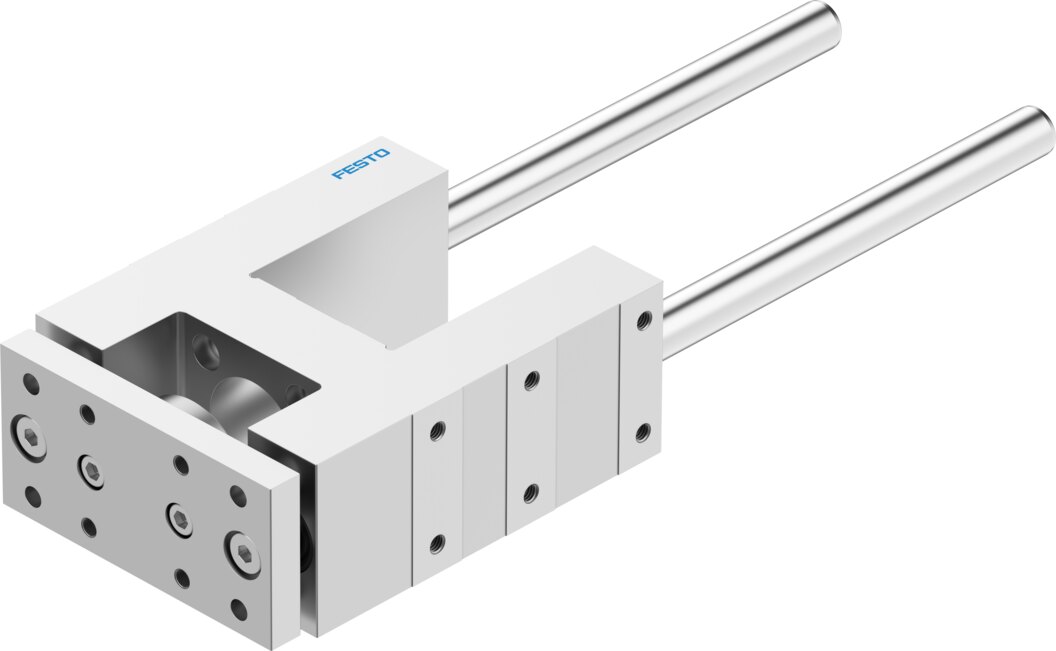

Festo FENG-40-160-KF Guide unit
Part number34501EAN / GTIN4052568115272HS code8412.90
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo FENG-40-160-KF — Guide unit, linear guides. stroke 160 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 34501
- Type code
- FENG-40-160-KF
- EAN / GTIN
- 4052568115272
- Product category
- Linear guides
- Size
- 40
- Stroke
- 160 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Guidance
- Explosion protection
- The information in the certificate must be observed!
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 ... 80 °C
- Max. force Fy
- 1000 N
- Max. force Fy static
- 1260 N
- Max. force Fz
- 1000 N
- Max. force Fz static
- 1260 N
- Max. moment Mx
- 44 Nm
- Max. torque Mx static
- 55 Nm
- Max. moment My
- 52 Nm
- Max. torque My static
- 65 Nm
- Max. moment Mz
- 52 Nm
- Max. torque Mz static
- 65 Nm
- Displacement force
- 15 N
- Product weight
- 2882 g
- Type of mounting
- With female thread
- Material guide component
- Tempered steel
- Material housing
- Anodised wrought aluminium alloy
- Material yoke plate
- Anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 51.6645 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84129070
- HS code
- 8412.90
Standards & Compliance
- HS Code
- 8412.90
Cross References
- EAN 4052568115272
- MPN 34501
Product Documentation
Document preview: FENG-40-160-KF — Festo product documentation
