Festo DZH-63-25-PPV-A Flat cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DZH-63-25-PPV-A — Flat cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 25 mm; piston diameter 63 mm, Equivalent diameter; operating pressure 0.06. 1 MPa (0.6. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 14074
- Type code
- DZH-63-25-PPV-A
- EAN / GTIN
- 4052568112387
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 25 mm
- Piston diameter
- 63 mm, Equivalent diameter
- Piston rod thread
- M16x1.5
- Torsional backlash at piston rod +/-
- 0.67 deg
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Design
- Piston, Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Variants
- Piston rod at one end
- Protection against torque/guide
- Oval piston
- Operating pressure
- 0.06 ... 1 MPa (0.6 ... 10 bar)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 ... 80 °C
- Cushioning length
- 23 mm
- Max. torque for protection against torsion
- 2 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 1682 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 1870 N
- Moving mass
- 625 g
- Product weight
- 1994 g
- Additional weight per 10 mm stroke
- 69.6 g
- Basic weight for 0 mm stroke
- 1820 g
- Type of mounting
- With female thread, with accessories
- Pneumatic connection
- G3/8
- Material cover
- Aluminium
- Material seals
- TPE-U(PU)
- Material housing
- Aluminium
- Material piston seal
- TPE-U(PU)
- Material piston rod
- High-alloy steel
- Product type
- Pneumatics VDMA air cylinder
- Product group
- Pneumatics
- Diameter
- 63 mm
- Carbon footprint (EPD)
- 40.3960 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568112387
- MPN 14074
Product Documentation
More from Festo
Festo
Festo NPQH-P-S8-P10 Blanking plug
578259
Festo
Festo NPQH-L-G12-Q14-P10 Push-in L-fitting
578293
Festo
Festo LRB-D-7-O-MIDI Pressure regulator
197538
Festo

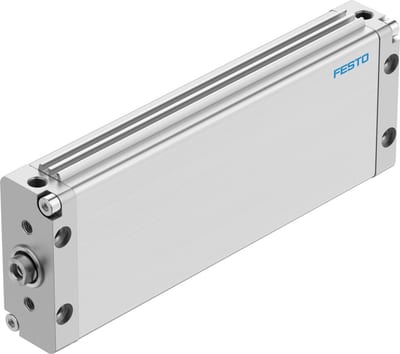

Festo DZF-63-250-P-A Flat cylinder
164090
Festo
Festo DSNU-50-160-P-A Round cylinder
196006
Festo

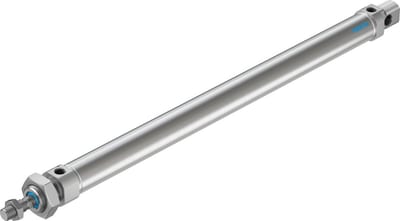

Festo DSNU-25-400-PPV-A ISO cylinder
35193
Festo
Festo HEL-1/4-D-MINI On/off valve
165077
Festo

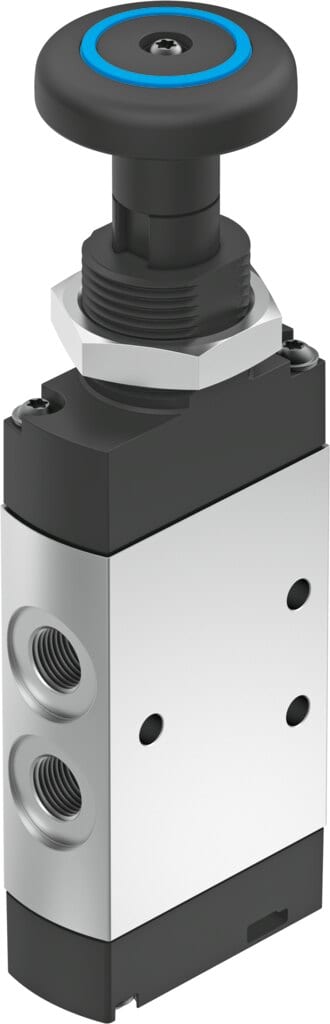

Festo VHEF-P-M52-M-G18 Pushbutton valve
