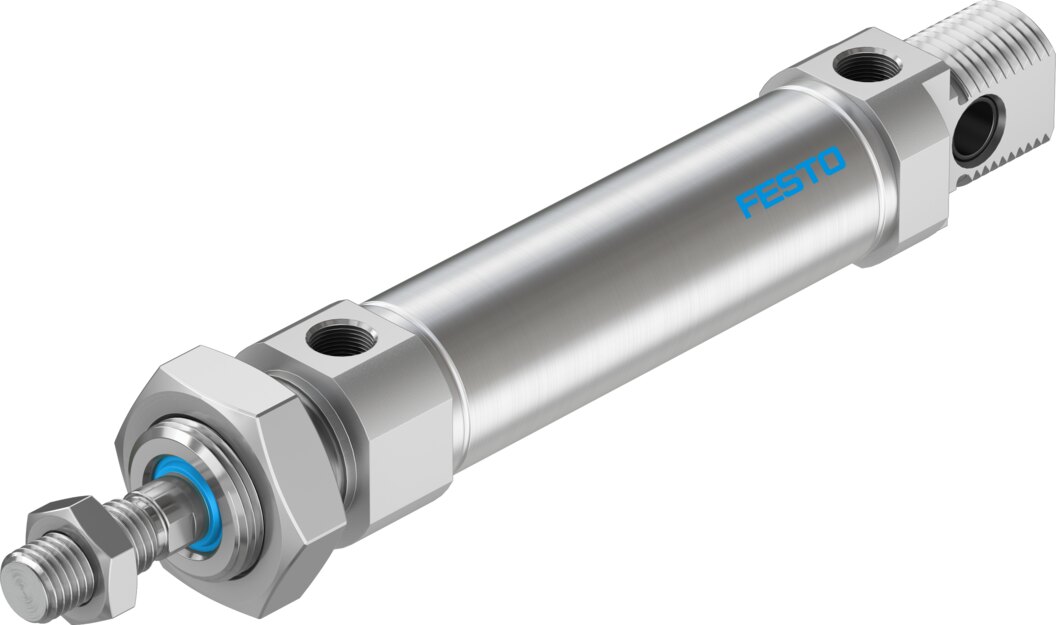

Festo DSNU-25-50-PPS-A ISO cylinder

Festo DSNU-25-50-PPS-A — ISO cylinder, round cylinders. stroke 50 mm; piston diameter 25 mm; operating pressure 0.1. 1 MPa (1. 10 bar).

Manufacturer part number (MPN)

559284

Type code

DSNU-25-50-PPS-A

EAN / GTIN

4052568205607

Product category

Round cylinders

Stroke

50 mm

Piston diameter

25 mm

Piston rod thread

M10x1.25

Cushioning

Self-adjusting pneumatic end-position cushioning

Mounting position

Any

Conforms to standard

ISO 6432

Piston-rod end

Male thread

Design

Piston, Piston rod, Cylinder barrel

Position detection

Via proximity switch

Symbol

00992970

Variants

Piston rod at one end

Operating pressure

0.1 ... 1 MPa (1 ... 10 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 6 according to ISO 14644-1

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.3 J

Cushioning length

17 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

247.4 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

294.5 N

Moving mass for 0 mm stroke

71 g

Additional moving mass per 10 mm stroke

6 g

Basic weight for 0 mm stroke

238 g

Additional weight per 10 mm stroke

11 g

Type of mounting

With accessories

Pneumatic connection

G1/8

Material cover

Wrought aluminium alloy, Colourless anodised

Material seals

NBR, TPE-U(PU)

Material piston rod

High-alloy stainless steel

Material cylinder barrel

High-alloy stainless steel

Product type

Pneumatic ISO Air Cylinder

Product group

Pneumatics

Port Size

G1/8"

Temperature min

-20 °C

Temperature max

80 °C

Working pressure max

10 bar

Carbon footprint (EPD)

3.9640 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31

• EAN 4052568205607
• MPN 559284
