Festo JMFDH-5-1/8 Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo JMFDH-5-1/8 — Solenoid valve, universal directional control valves. valve function 5/2-way, bistable, dominant; operating pressure 0.25. 0.8 MPa (2.5. 8 bar); nominal size 5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 8821
- Type code
- JMFDH-5-1/8
- EAN / GTIN
- 4052568111274
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, bistable, dominant
- Type of actuation
- Electrical
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 601 l/min
- pneumatic working port
- G1/8
- Operating voltage
- Via solenoid coil, must be ordered separately
- Operating pressure
- 0.25 ... 0.8 MPa (2.5 ... 8 bar)
- Design
- Poppet seat
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65
- Nominal size
- 5 mm
- Grid dimension
- 27 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of piloting
- Piloted
- Flow direction
- Non-reversible
- Symbol
- 00995980
- lap
- Underlap
- Max. switching frequency
- 16 Hz
- Switching time reversal
- 16 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Characteristic coil data
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 260 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On manifold rail, with through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- NBR, TPE-U(PU)
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Return
- Air
- Carbon footprint (EPD)
- 3.6856 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568111274
- MPN 8821
Product Documentation
More from Festo
Festo
Festo PRS-1/4-7-B Manifold block
15866
Festo
Festo FRC-3/8-D-MIDI Service unit
159588
Festo
Festo PRS-1/4-5-B Manifold block
15864
Festo

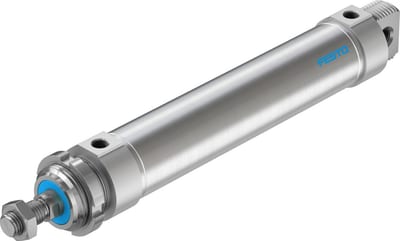

Festo DSNU-50-200-PPV-A Round cylinder
196047
Festo
Festo LRS-1/2-D-7-O-I-MIDI Pressure regulator
194649
Festo

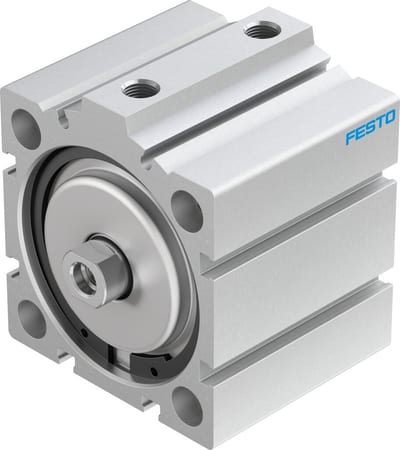

Festo ADVC Short stroke cylinder - 63mm, G1/8, 20mm, ADVC-63-20-I-P-A
188286
Festo

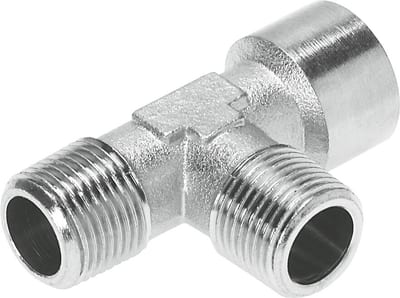

Festo NPFC-T-2R18-G18-MMF T-fitting
8030259
Festo

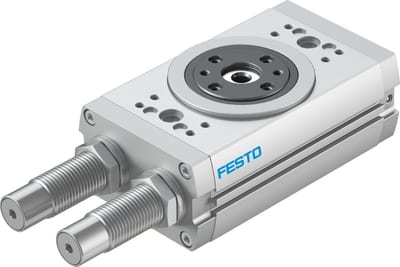

Festo DRRD-35-180-FH-Y9A Semi-rotary drive
1547102
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 4052568111274?
- 4052568111274 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 4052568111274.
- What is the HS code for 4052568111274?
- The customs tariff (HS) code for 4052568111274 is 8481.20.
- Who manufactures 4052568111274?
- 4052568111274 is a Festo product in the Pneumatics range.
- Is a datasheet available for 4052568111274?
- Yes — the 4052568111274 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 4052568111274?
- The minimum order quantity is 1.
- Is 4052568111274 available?
- Yes — 4052568111274 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
