Festo

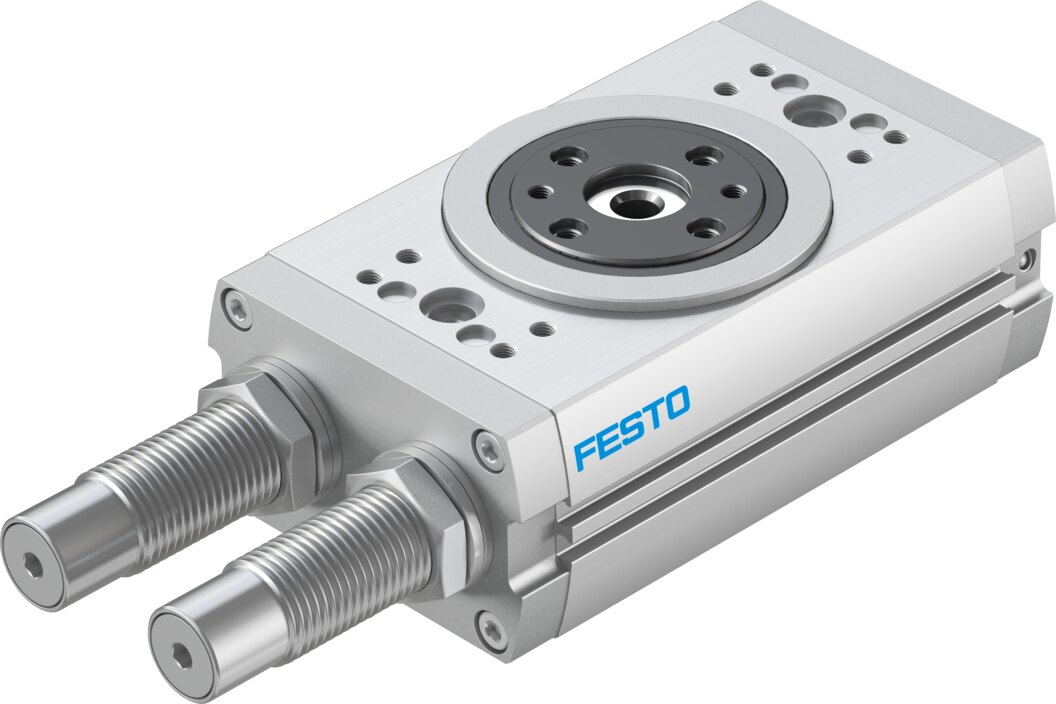

Festo DRRD-35-180-FH-Y9A Semi-rotary drive
Part number1547102EAN / GTIN4052568238247HS code8412.39
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DRRD-35-180-FH-Y9A — Semi-rotary drive, rack and pinion actuators. operating pressure 0.2. 1 MPa (2. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 1547102
- Type code
- DRRD-35-180-FH-Y9A
- EAN / GTIN
- 4052568238247
- Product category
- Rack and pinion actuators
- Size
- 35
- Cushioning angle
- 85 deg
- Setting range of swivel angle for each end position
- +10 /-190 deg
- Swivel angle
- 180 deg
- Cushioning
- Internal hydraulic cushioning normal
- Mounting position
- Any
- Design
- Rack and pinion
- Position detection
- Via proximity switch
- Symbol
- 00991265
- Operating pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- LABS (PWIS) conformity
- VDMA24364 zone III
- Ambient temperature
- -10 ... 60 °C
- Theoretical torque at 0.6 MPa (6 bar, 87 psi)
- 15.8 Nm
- Permissible mass moment of inertia
- 1.5 kgm²
- Product weight
- 4784 g
- Type of mounting
- With through-hole, with female thread
- Pneumatic connection
- G1/8
- Material drive shaft
- Tempered steel
- Material cover
- Aluminium, anodised
- Material seals
- NBR, TPE-U(PU)
- Material housing
- Smooth-anodised
- Product type
- Pneumatic rodless cylinders
- Product group
- Pneumatics
- Diameter
- 35 mm
- Stroke rate
- 180 mm
- Carbon footprint (EPD)
- 100.4599 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123900
- HS code
- 8412.39
Standards & Compliance
- HS Code
- 8412.39
Cross References
- EAN 4052568238247
- MPN 1547102
Product Documentation
Document preview: DRRD-35-180-FH-Y9A — Festo product documentation
More from Festo
Festo
Festo FRM-1/8-D-MINI Branching module
164949
Festo
Festo VABM-L1-10W-G18-4 Manifold rail
566584
Festo
Festo VMPA2-M1H-B-S-G1/8-PI Solenoid valve
537974
Festo

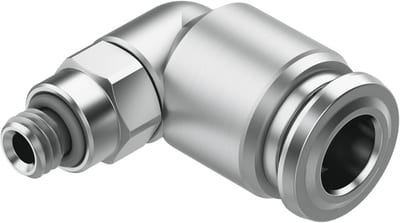

Festo NPQR-L-M5-Q6 Push-in fitting
8098626
Festo

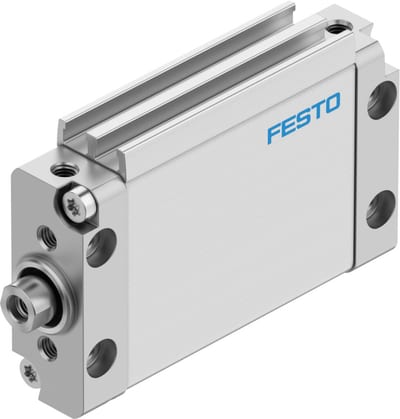

Festo DZF-25-25-P-A Flat cylinder
164028
Festo
Festo ADNGF-40-15-PPS-A Compact cylinder
574032
Festo

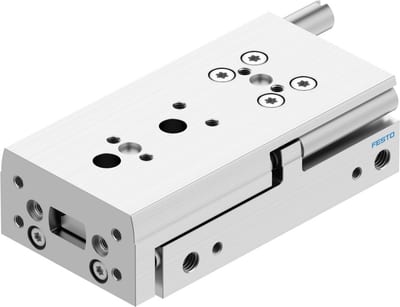

Festo DGST-8-40-PA Mini slide
8085113
Festo

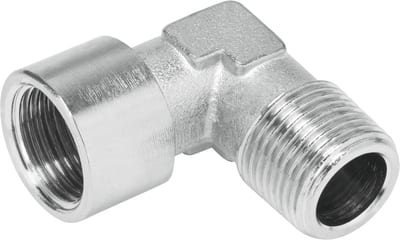

Festo NPFC-L-2M5-MF Elbow fitting
