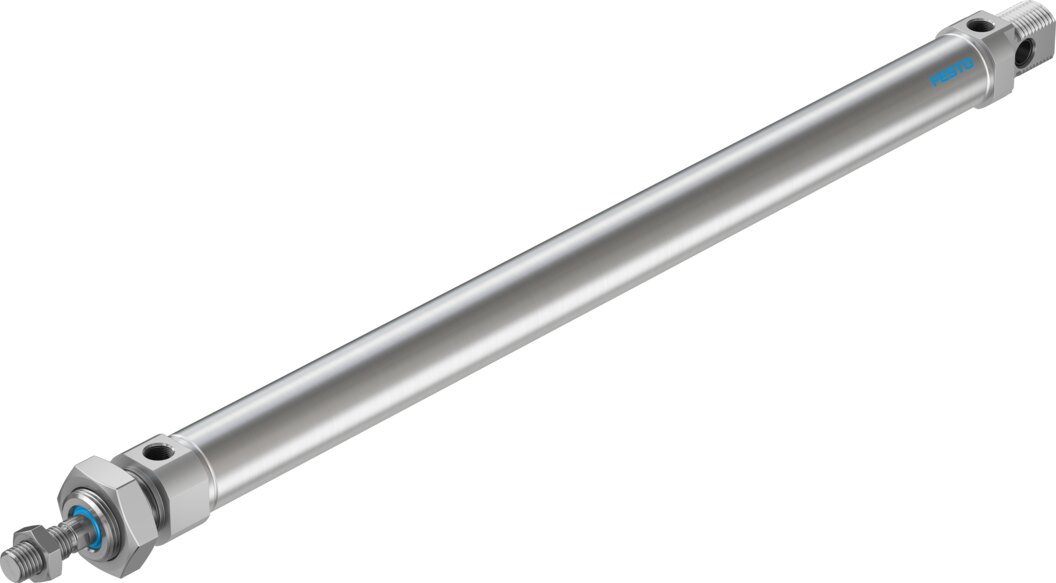

Festo DSNU-25-320-PPS-A ISO cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSNU-25-320-PPS-A — ISO cylinder, round cylinders. stroke 320 mm; piston diameter 25 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 559292
- Type code
- DSNU-25-320-PPS-A
- EAN / GTIN
- 4052568205683
- Product category
- Round cylinders
- Stroke
- 320 mm
- Piston diameter
- 25 mm
- Piston rod thread
- M10x1.25
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 6432
- Piston-rod end
- Male thread
- Design
- Piston, Piston rod, Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.3 J
- Cushioning length
- 17 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 247.4 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 294.5 N
- Moving mass for 0 mm stroke
- 71 g
- Additional moving mass per 10 mm stroke
- 6 g
- Basic weight for 0 mm stroke
- 238 g
- Additional weight per 10 mm stroke
- 11 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/8
- Material cover
- Wrought aluminium alloy, Colourless anodised
- Material seals
- NBR, TPE-U(PU)
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- High-alloy stainless steel
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G1/8"
- Temperature min
- -20 °C
- Temperature max
- 80 °C
- Working pressure max
- 10 bar
- Carbon footprint (EPD)
- 8.0382 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568205683
- MPN 559292
Product Documentation
More from Festo
Festo
Festo ADNGF-80-10-PPS-A Compact cylinder
574058
Festo
Festo AEVC Short stroke cylinder - 40mm, G1/8, 10mm, AEVC-40-10-A-P
188230
Festo
Festo ADNGF-80-25-PPS-A Compact cylinder
4052568221843
Festo
Festo VABB-B10-30-E-P3 Cover plate
8026336
Festo
Festo VUVG-B10-T32U-MZT-F-1P3 Solenoid valve
574365
Festo
Festo MSFW-230-50/60-OD Solenoid coil
34422
Festo
Festo VUVG-B18-T32U-AZT-F-1P3 Solenoid valve
574444
Festo
Festo DGSL-10-50-PA Mini slide
543946
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 559292?
- 559292 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 559292.
- What is the HS code for 559292?
- The customs tariff (HS) code for 559292 is 8412.31.
- Who manufactures 559292?
- 559292 is a Festo product in the Pneumatics range.
- Is a datasheet available for 559292?
- Yes — the 559292 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 559292?
- The minimum order quantity is 1.
- Is 559292 available?
- Yes — 559292 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
