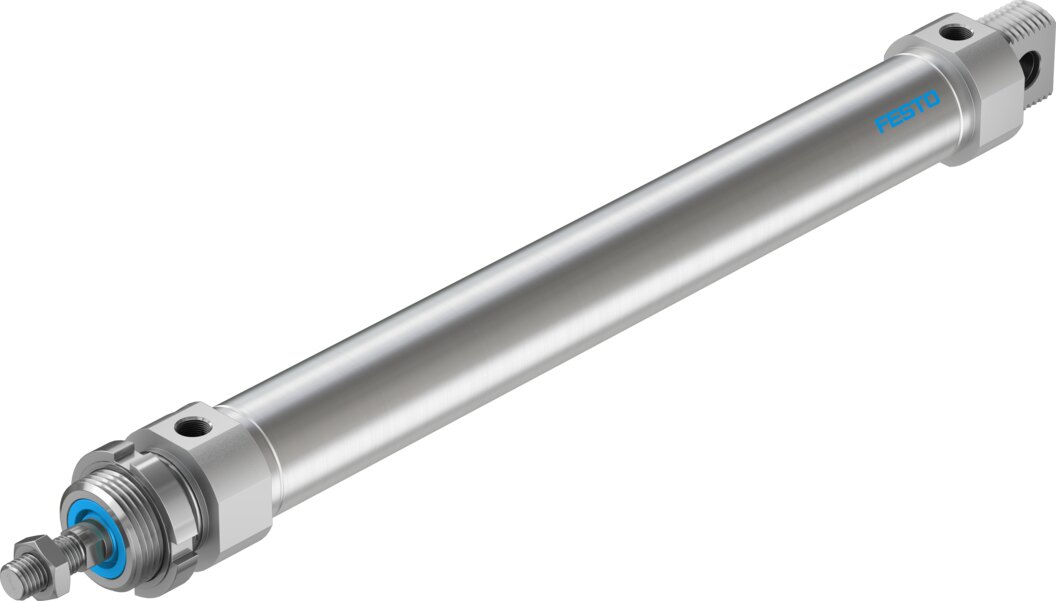

Festo DSNU-32-250-PPV-A Round cylinder

Festo DSNU-32-250-PPV-A — Round cylinder, round cylinders. stroke 250 mm; piston diameter 32 mm; operating pressure 0.1. 1 MPa (1. 10 bar).

Manufacturer part number (MPN)

196028

Type code

DSNU-32-250-PPV-A

EAN / GTIN

4052568158767

Product category

Round cylinders

Stroke

250 mm

Piston diameter

32 mm

Piston rod thread

M10x1.25

Cushioning

Pneumatic cushioning, adjustable at both ends

Mounting position

Any

Design

Piston, Piston rod, Cylinder barrel

Position detection

Via proximity switch

Symbol

00991235

Operating pressure

0.1 ... 1 MPa (1 ... 10 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 6 according to ISO 14644-1

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.4 J

Cushioning length

14 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

415 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

482.5 N

Moving mass

346 g

Product weight

758 g

Type of mounting

With accessories

Pneumatic connection

G1/8

Material cover

Wrought aluminium alloy

Material seals

NBR, TPE-U(PU)

Material piston rod

High-alloy steel

Material cylinder barrel

High-alloy stainless steel

Product type

Pneumatic ISO Air Cylinder

Product group

Pneumatics

Port Size

G1/8"

Carbon footprint (EPD)

10.0340 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31

• EAN 4052568158767
• MPN 196028
