Festo

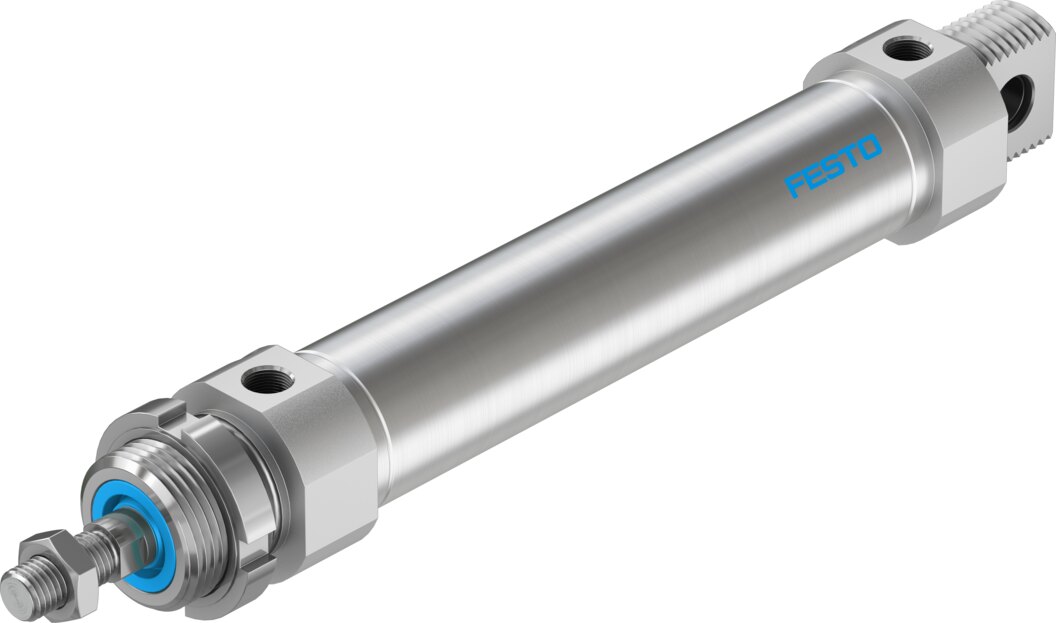

Festo DSNU-32-125-PPV-A Round cylinder
Part number196025EAN / GTIN4052568005115HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSNU-32-125-PPV-A — Round cylinder, round cylinders. stroke 125 mm; piston diameter 32 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 196025
- Type code
- DSNU-32-125-PPV-A
- EAN / GTIN
- 4052568005115
- Product category
- Round cylinders
- Stroke
- 125 mm
- Piston diameter
- 32 mm
- Piston rod thread
- M10x1.25
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Design
- Piston, Piston rod, Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.4 J
- Cushioning length
- 14 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 415 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 482.5 N
- Moving mass
- 234 g
- Product weight
- 565 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/8
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR, TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- High-alloy stainless steel
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G1/8"
- Carbon footprint (EPD)
- 7.8593 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568005115
- MPN 196025
Product Documentation
Document preview: DSNU-32-125-PPV-A — Festo product documentation
More from Festo
Festo
Festo VABM-B10-30E-G34-7-P3 Manifold block
8026400
Festo
Festo DADS-AB-G6-10-50 Covering
1162400
Festo
Festo LFR-1/4-D-MINI-KF-A Service unit combination
185770
Festo
Festo VABM-L1-14G-G14-24-M-GR Manifold rail
573935
Festo
Festo DADS-AB-G6-10-500 Covering
1212479
Festo
Festo LFR-1-D-5M-MAXI Filter regulator
162725
Festo
Festo ADVU-80-40-P-A Compact cylinder
156573
Festo

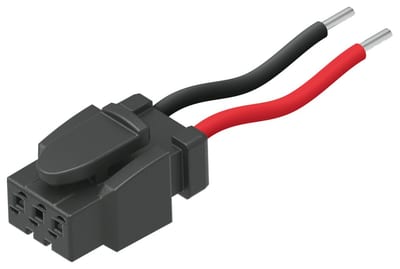

Festo NEBV-H1G2-KN-2.5-N-LE2 Plug socket with cable
