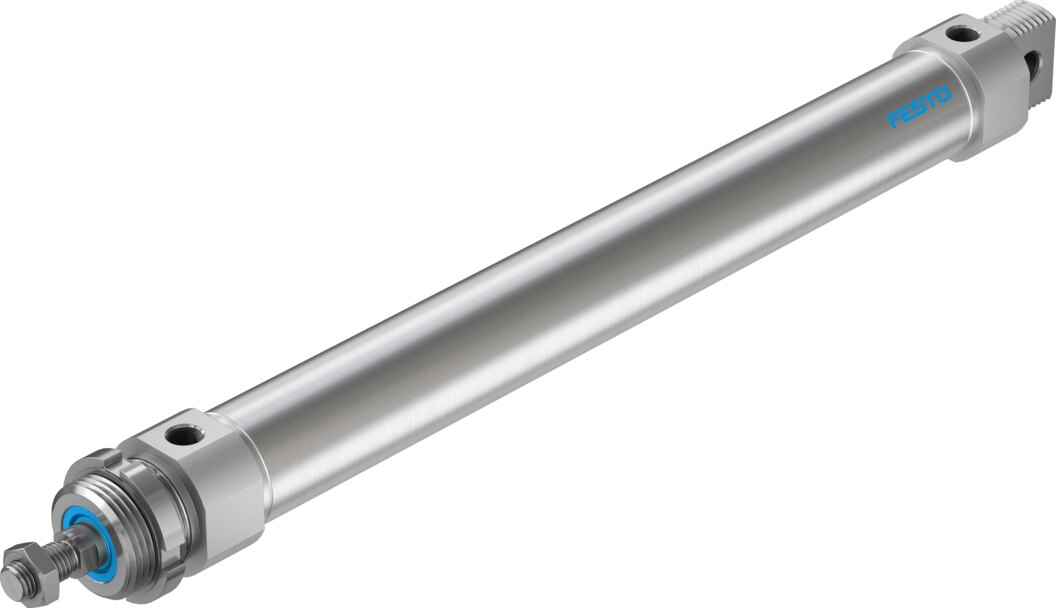

Festo DSNU-40-320-PPS-A Round cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSNU-40-320-PPS-A — Round cylinder, round cylinders. stroke 320 mm; piston diameter 40 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 559314
- Type code
- DSNU-40-320-PPS-A
- EAN / GTIN
- 4052568205904
- Product category
- Round cylinders
- Stroke
- 320 mm
- Piston diameter
- 40 mm
- Piston rod thread
- M12x1.25
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Design
- Piston, Piston rod, Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.7 J
- Cushioning length
- 18 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 633.3 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 752.9 N
- Moving mass
- 742 g
- Product weight
- 1429 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/4
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR, TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- High-alloy stainless steel
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G1/4"
- Carbon footprint (EPD)
- 28.4155 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568205904
- MPN 559314
Product Documentation
More from Festo
Festo
Festo CPE10-M1BH-5/3G-M5-B Solenoid valve
533159
Festo
Festo VUVS-L25-M32C-AD-G14-F8-1B2 Solenoid valve
575479
Festo
Festo DSNU-8-10-P-A ISO cylinder
19177
Festo
Festo LRS-1/4-D-MIDI Pressure regulator
194626
Festo
Festo PLN-4X0,75-Rt Plastic tubing
558217
Festo
Festo VABM-L1-10HWS2-G18-8-GR Manifold rail
8058338
Festo
Festo ADVC Short stroke cylinder - 40mm, G1/8, 25mm, ADVC-40-25-I-P-A
188236
Festo
Festo ADN-16-20-A-P-A Compact cylinder
536222
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 559314?
- 559314 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 559314.
- What is the HS code for 559314?
- The customs tariff (HS) code for 559314 is 8412.31.
- Who manufactures 559314?
- 559314 is a Festo product in the Pneumatics range.
- Is a datasheet available for 559314?
- Yes — the 559314 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 559314?
- The minimum order quantity is 1.
- Is 559314 available?
- Yes — 559314 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
