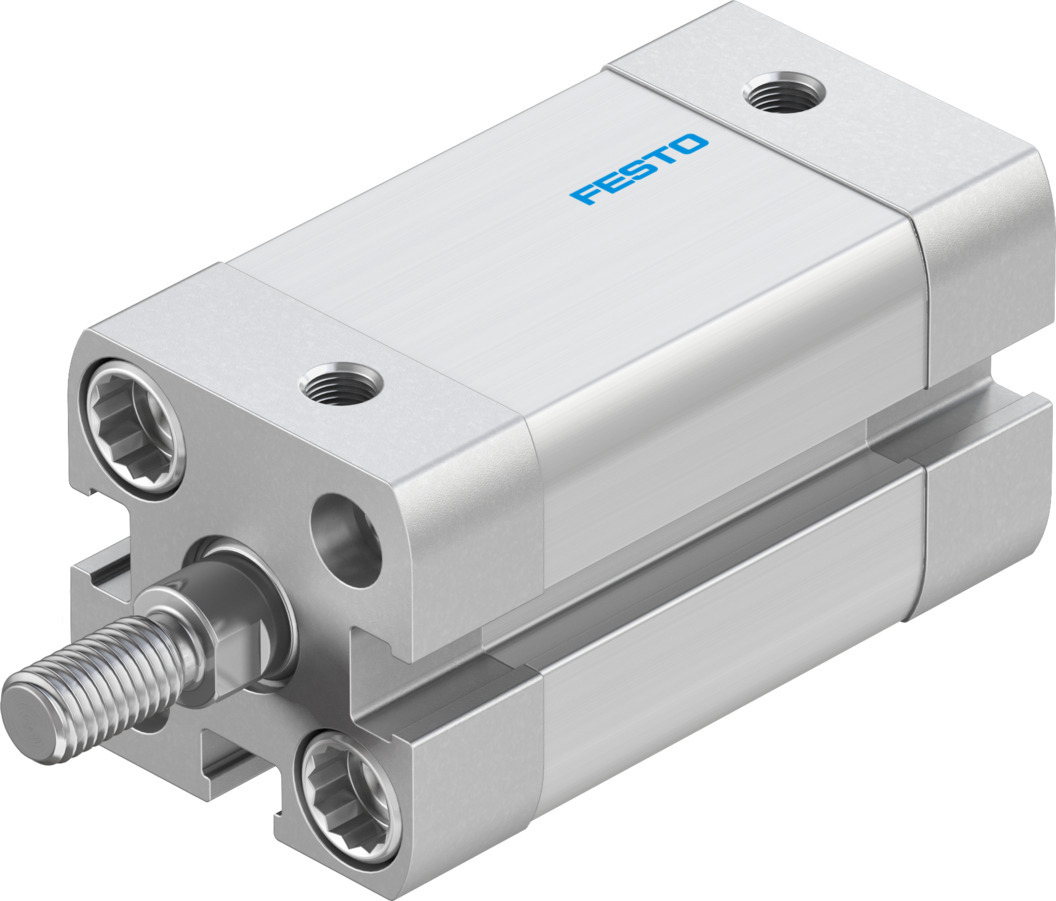

Festo ADN-16-20-A-P-A Compact cylinder

Festo ADN-16-20-A-P-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 20 mm; piston diameter 16 mm; operating pressure 0.1. 1 MPa (1. 10 bar; 14.5. 145 psi).

Manufacturer part number (MPN)

536222

Type code

ADN-16-20-A-P-A

EAN / GTIN

4052568087289

Product category

Compact pneumatic cylinders, short-stroke and flat cylinders

Stroke

20 mm

Piston diameter

16 mm

Piston rod thread

M6

Based on standard

ISO 21287

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Mode of operation

Double-acting

Piston-rod end

Male thread

Position detection

Via proximity switch

Symbol

00991217

Variants

Piston rod at one end

Operating pressure

0.1 ... 1 MPa (1 ... 10 bar; 14.5 ... 145 psi)

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 5 according to ISO 14644-1

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.15 J

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

90 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

121 N

Moving mass

26 g

Product weight

103 g

Type of mounting

With through-hole, with female thread, with accessories

Pneumatic connection

M5

Material collar screws

Steel

Material cover

Anodised wrought aluminium alloy

Material seals

TPE-U(PUR)

Material piston rod

High-alloy steel

Material cylinder barrel

Smooth-anodised wrought aluminium alloy

Product type

Pneumatic ISO compact air cylinders

Product group

Pneumatics

Port Size

M5

Temperature max

80 °C

Temperature min

-20 °C

Working pressure min

1 bar

Working pressure max

10 bar

Carbon footprint (EPD)

2.0951 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31
