Festo
Festo DNC-40-50-PPV ISO cylinder
Part number163353EAN / GTIN4052568133900HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DNC-40-50-PPV — ISO cylinder, pneumatic cylinders. stroke 50 mm; piston diameter 40 mm; operating pressure 0.06. 1.2 MPa (0.6. 12 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 163353
- Type code
- DNC-40-50-PPV
- EAN / GTIN
- 4052568133900
- Product category
- Pneumatic cylinders
- Lifecycle status
- Phase-out
- Stroke
- 50 mm
- Piston diameter
- 40 mm
- Piston rod thread
- M12x1.25
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston-rod end
- Male thread
- Design
- Piston, Piston rod, Profile barrel
- Position detection
- None
- Symbol
- 00991232
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 ... 1.2 MPa (0.6 ... 12 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.2 J
- Cushioning length
- 20 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 633 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 754 N
- Moving mass for 0 mm stroke
- 307 g
- Additional moving mass per 10 mm stroke
- 16 g
- Basic weight for 0 mm stroke
- 800 g
- Additional weight per 10 mm stroke
- 45 g
- Type of mounting
- With female thread, with accessories
- Pneumatic connection
- G1/4
- Material cover
- Die-cast aluminium, coated
- Material seals
- TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Wrought aluminium alloy, Smooth-anodised
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G1/4"
- Carbon footprint (EPD)
- 21.3981 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568133900
- MPN 163353
Product Documentation
Document preview: DNC-40-50-PPV — Festo product documentation
More from Festo
Festo
Festo AEVU-16-20-P-A Compact cylinder
156938
Festo
Festo VMPA1-M1H-MU-PI Solenoid valve
553113
Festo
Festo ADVU-80-30-P-A Compact cylinder
156572
Festo
Festo SNCS-125-R3 Swivel flange
2895926
Festo
Festo VABM-B10-30S-G12-5-P3 Manifold block
8026416
Festo

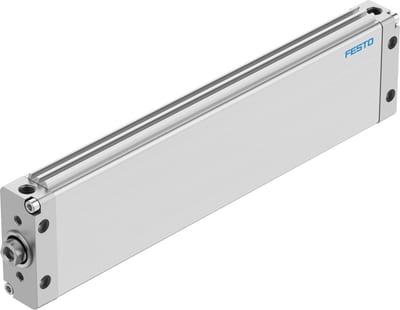

Festo DZF-50-320-P-A Flat cylinder
164077
Festo

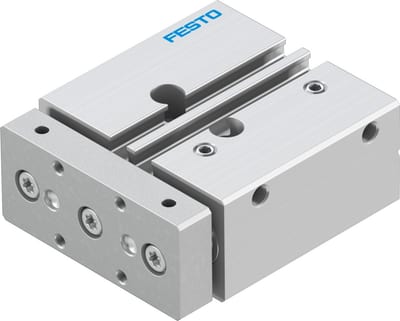

Festo DFM-12-20-P-A-KF Guided drive
170900
Festo

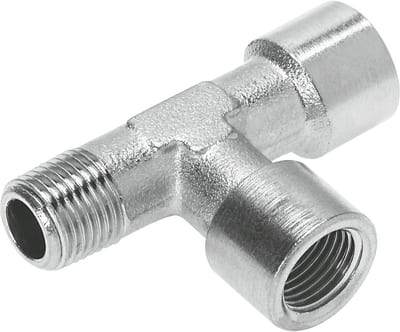

Festo NPFC-T-3M5-FMF T-fitting
