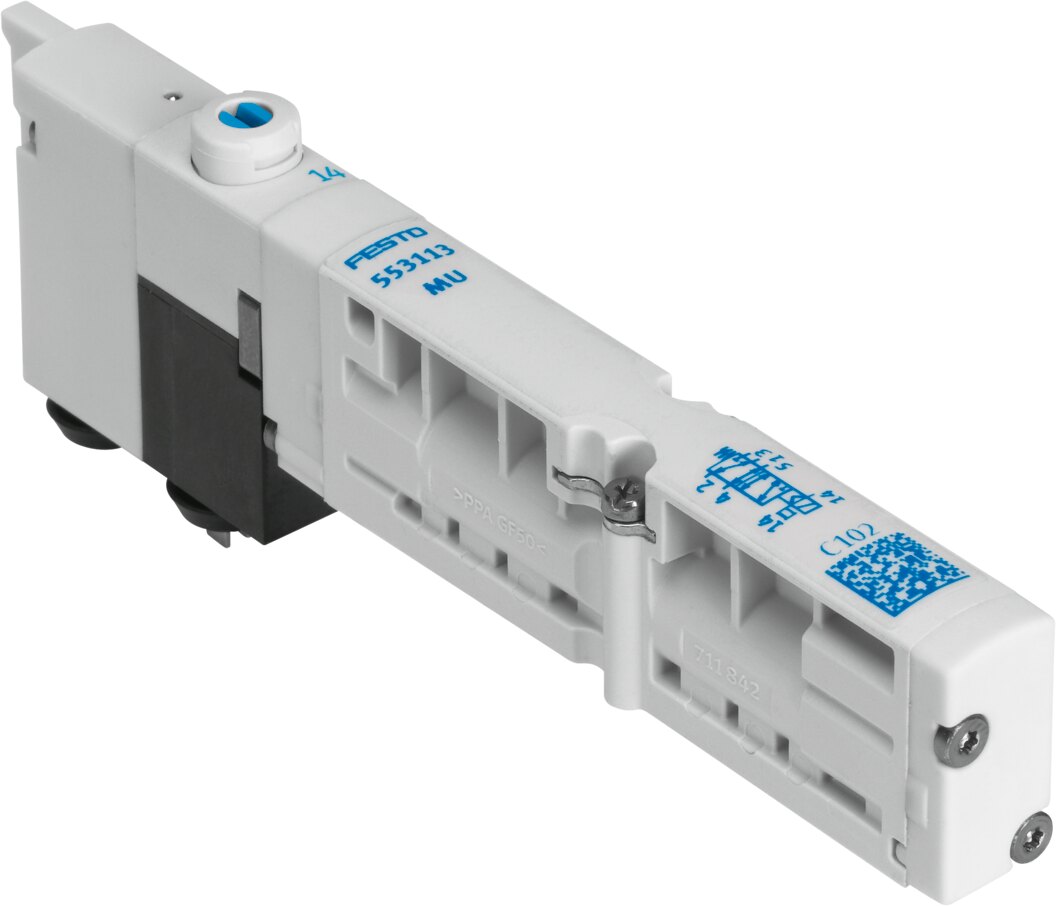

Festo VMPA1-M1H-MU-PI Solenoid valve
Part number553113EAN / GTIN4052568095727HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VMPA1-M1H-MU-PI — Solenoid valve, universal directional control valves. valve function 5/2-way, single solenoid; operating pressure -0.09. 1 MPa (-0.9. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 553113
- Type code
- VMPA1-M1H-MU-PI
- EAN / GTIN
- 4052568095727
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Electrical
- Valve size
- 10 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 140 ... 190 l/min
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Poppet valve with spring return
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Certificate issuing authority
- UL MH19482
- Degree of protection
- IP65, In mounted state, To IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Flow direction
- Reversible
- Symbol
- 00991190
- lap
- Underlap
- Signal status display
- Yes
- Pilot pressure
- 0.4 ... 0.8 MPa (4 ... 8 bar)
- Suitability for vacuum
- Yes
- Standard nominal flow rate with QS-6
- 140 ... 190 l/min
- Switching time off
- 14 ms
- Switching time on
- 10 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse with 1 signal
- 200 µs
- Permissible voltage fluctuations
- +/-25%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 3 - high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 40 °C
- Media temperature
- -5 ... 50 °C
- Relative air humidity
- Max. 90% at 40 °C
- Ambient temperature
- -5 ... 50 °C
- Max. tightening torque for valve mounting
- 0.25 Nm
- Product weight
- 35 g
- Type of mounting
- With through-hole
- Material seals
- NBR
- Material housing
- Reinforced PPA
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 0.4941 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568095727
- MPN 553113
Product Documentation
Document preview: VMPA1-M1H-MU-PI — Festo product documentation
More from Festo
Festo
Festo ADVU-80-30-P-A Compact cylinder
156572
Festo
Festo SNCS-125-R3 Swivel flange
2895926
Festo
Festo VABM-B10-30S-G12-5-P3 Manifold block
8026416
Festo
Festo DZF-50-320-P-A Flat cylinder
164077
Festo
Festo DFM-12-20-P-A-KF Guided drive
170900
Festo
Festo NPFC-T-3M5-FMF T-fitting
8030245
Festo
Festo VABM-L1-10HW-G18-16-GR Manifold rail
573442
Festo

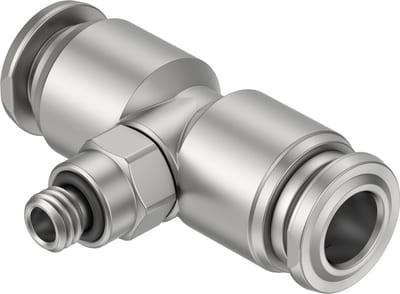

Festo NPQR-T-M5-Q6 Push-in fitting
