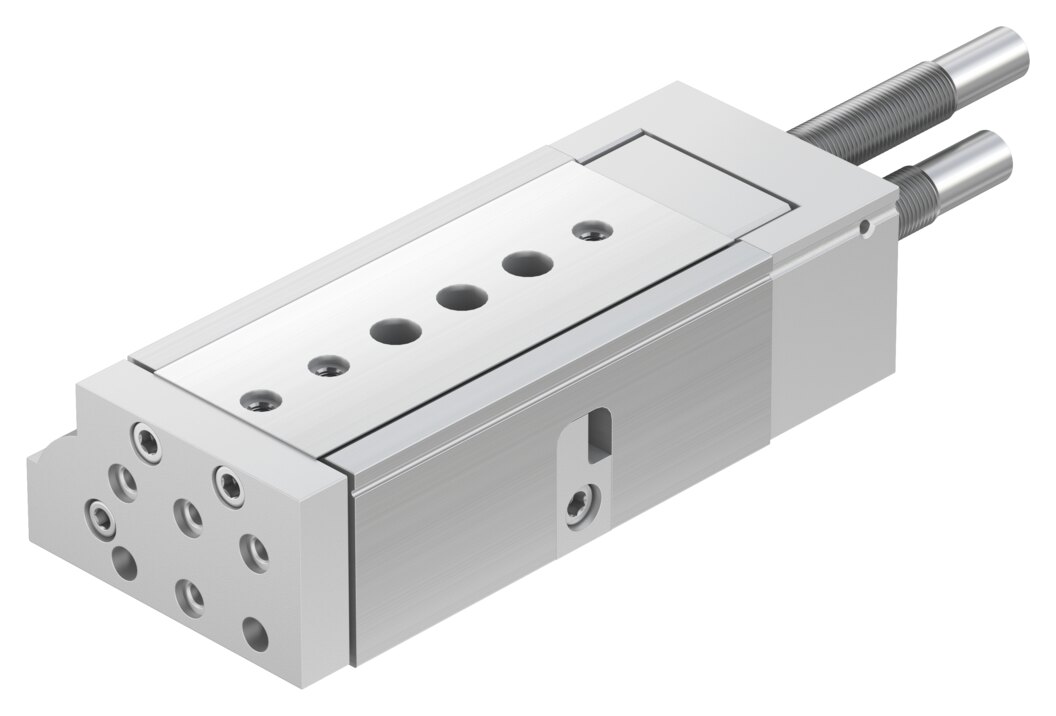

Festo DGSL-25-50-Y3A Mini slide
Part number544050EAN / GTIN4052568183936HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGSL-25-50-Y3A — Mini slide, drives with slides. stroke 50 mm; piston diameter 32 mm; operating pressure 0.1. 0.8 MPa (1. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 544050
- Type code
- DGSL-25-50-Y3A
- EAN / GTIN
- 4052568183936
- Product category
- Drives with slides
- Stroke
- 50 mm
- Adjustable end position range/length front
- 56 mm
- Adjustable end position range/length rear
- 51.5 mm
- Piston diameter
- 32 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Progressive shock absorber at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Design
- Yoke, Piston, Piston rod, Slide
- Position detection
- Via proximity switch
- Symbol
- 00991263
- Operating pressure
- 0.1 ... 0.8 MPa (1 ... 8 bar)
- Max. speed
- 0.8 m/s
- Repetition accuracy
- ±0.01 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 ... 60 °C
- Impact energy in end positions
- 10 J
- Cushioning length
- 20 mm
- Max. force Fy
- 4650 N
- Max. force Fz
- 4650 N
- Max. moment Mx
- 120 Nm
- Max. moment My
- 60 Nm
- Max. moment Mz
- 60 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 415 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 483 N
- Moving mass
- 1244 g
- Product weight
- 3293 g
- alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- G1/8
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 63.4311 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568183936
- MPN 544050
Product Documentation
Document preview: DGSL-25-50-Y3A — Festo product documentation
