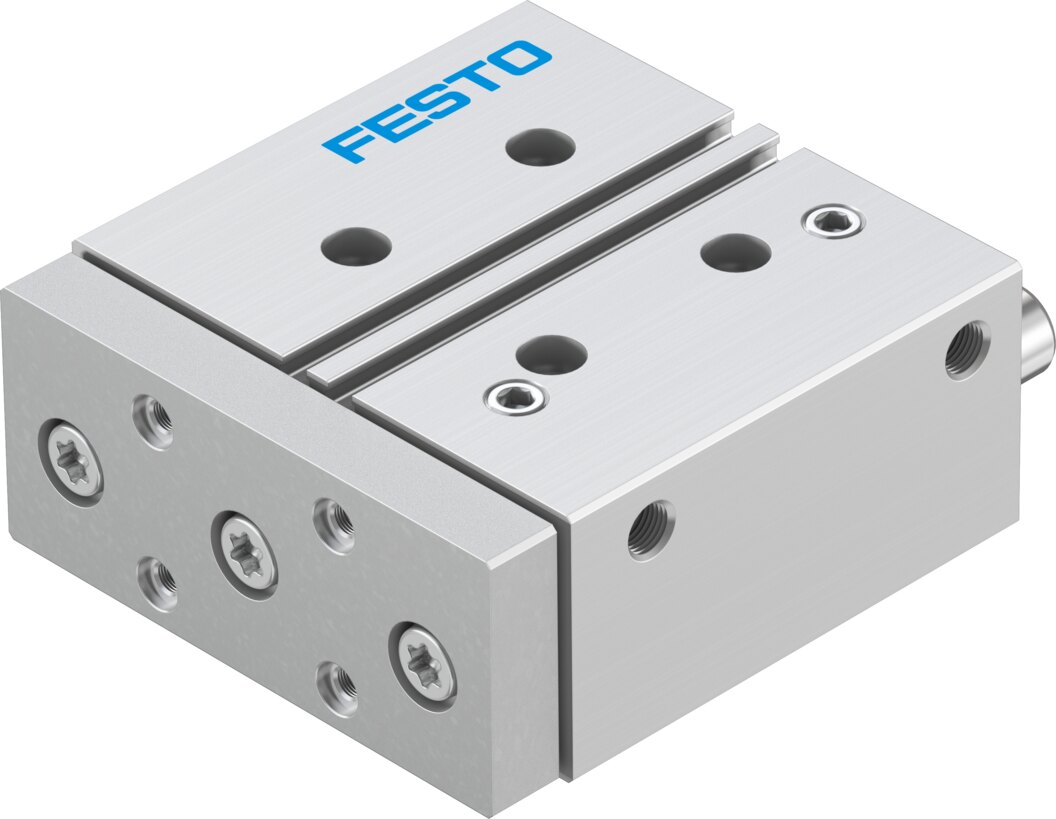

Festo DFM Guide Cylinder - 32mm, G1/8, 50mm, DFM-32-50-P-A-KF
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DFM Guide Cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: piston diameter 32 mm, port size G1/8, stroke rate 50 mm, supplier type designation DFM-32-50-P-A-KF. Supplied under manufacturer part number 170933, EAN 4052568013509, HS code 8412.31, country of origin Germany.
Technical Specifications
- Distance from centre of gravity of load to yoke plate xs
- 50 mm
- Stroke
- 50 mm
- Piston diameter
- 32 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Guidance
- Position detection
- Via proximity switch
- Symbol
- 00991737
- Operating pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar)
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -5 ... 60 °C
- Impact energy in end positions
- 0.4 J
- Max. force Fy
- 1130 N
- Max. force Fy static
- 1260 N
- Max. force Fz
- 1130 N
- Max. force Fz static
- 1260 N
- Max. moment Mx
- 44.09 Nm
- Max. torque Mx static
- 49.14 Nm
- Max. moment My
- 18.66 Nm
- Max. torque My static
- 20.79 Nm
- Max. moment Mz
- 18.66 Nm
- Max. torque Mz static
- 20.79 Nm
- Max. permissible torque load Mx as a function of stroke
- 7.09 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 415 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 482 N
- Moving mass
- 996 g
- Product weight
- 2038 g
- Centre of gravity of moving mass as a function of stroke
- 37.1 mm
- alternative connections
- See product drawing
- Pneumatic connection
- G1/8
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- EAN / GTIN
- 4052568013509
- Festo type code
- DFM-32-50-P-A-KF
- Festo order number
- 170933
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 42.3486 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 170933
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568013509
- MPN 170933
