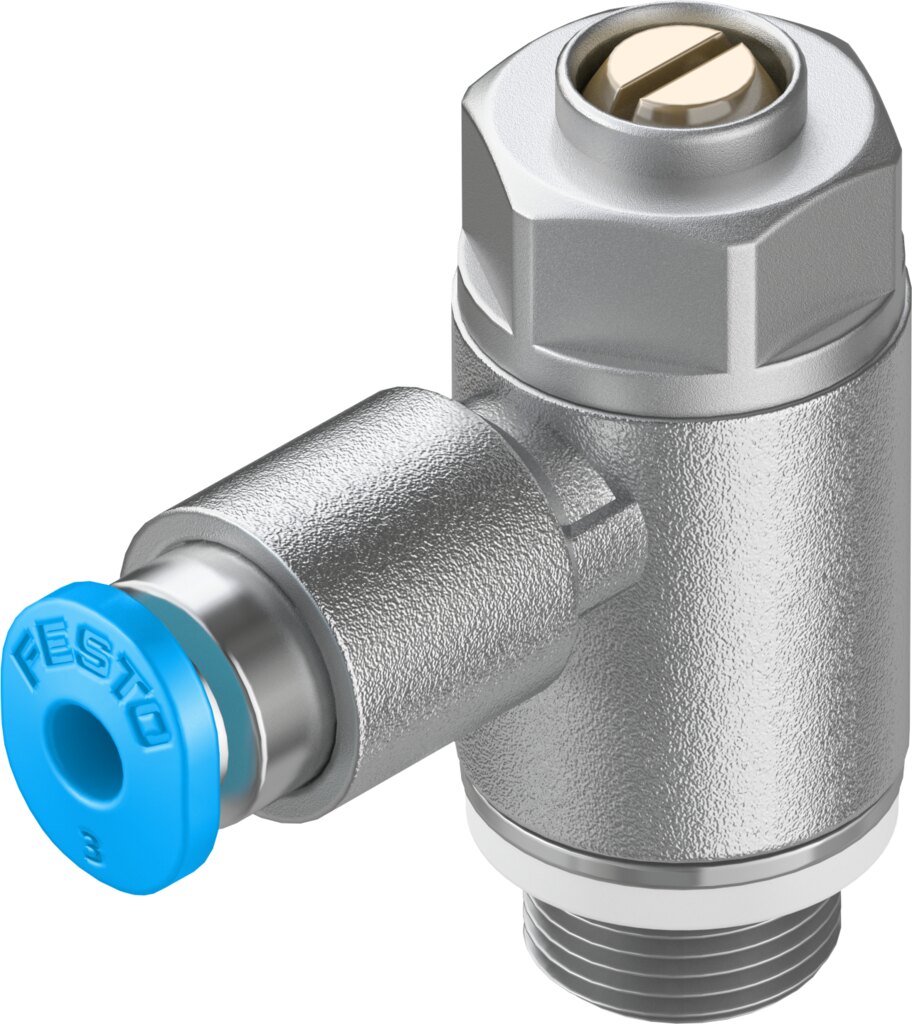

Festo GRLZ Throttle check valve - 1/8", 3mm, GRLZ-1/8-QS-3-D
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo GRLZ Throttle check valve. Pneumatic flow valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread 1/8", outer hose diameter 3 mm, supplier type designation GRLZ-1/8-QS-3-D. Supplied under manufacturer part number 193156, EAN 4052568043872, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- Supply air one-way flow control function
- Pneumatic connection, port 1
- QS-3
- Pneumatic connection, port 2
- G1/8
- Adjustment component
- Slotted head screw
- Type of mounting
- Screw-in; With male thread
- Standard nominal flow rate in flow control direction
- 130 l/min
- Standard nominal flow rate in blocked direction
- 100 ... 130 l/min
- Operating pressure
- 0.02 ... 1 MPa (0.2 ... 10 bar) (2.9 ... 145 psi)
- Ambient temperature
- -10 ... 60 °C
- Maritime classification
- See certificate
- Mounting position
- Any
- Symbol
- 00991453
- Operating pressure complete temperature range
- 0.2 ... 10 bar
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Nominal torque
- 6 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 22 g
- Material seals
- NBR
- Material hollow bolt
- Wrought aluminium alloy; anodised
- Material release ring
- POM
- Material adjusting screw
- Brass
- Material swivel fitting
- Die-cast zinc
- EAN / GTIN
- 4052568043872
- Festo type code
- GRLZ-1/8-QS-3-D
- Festo order number
- 193156
- Product type
- Pneumatic flow valves
- Product group
- Pneumatics
- Thread
- 1/8"
- Outer hose diameter
- 3 mm
- Carbon footprint (EPD)
- 0.3646 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 193156
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568043872
- MPN 193156
