Festo

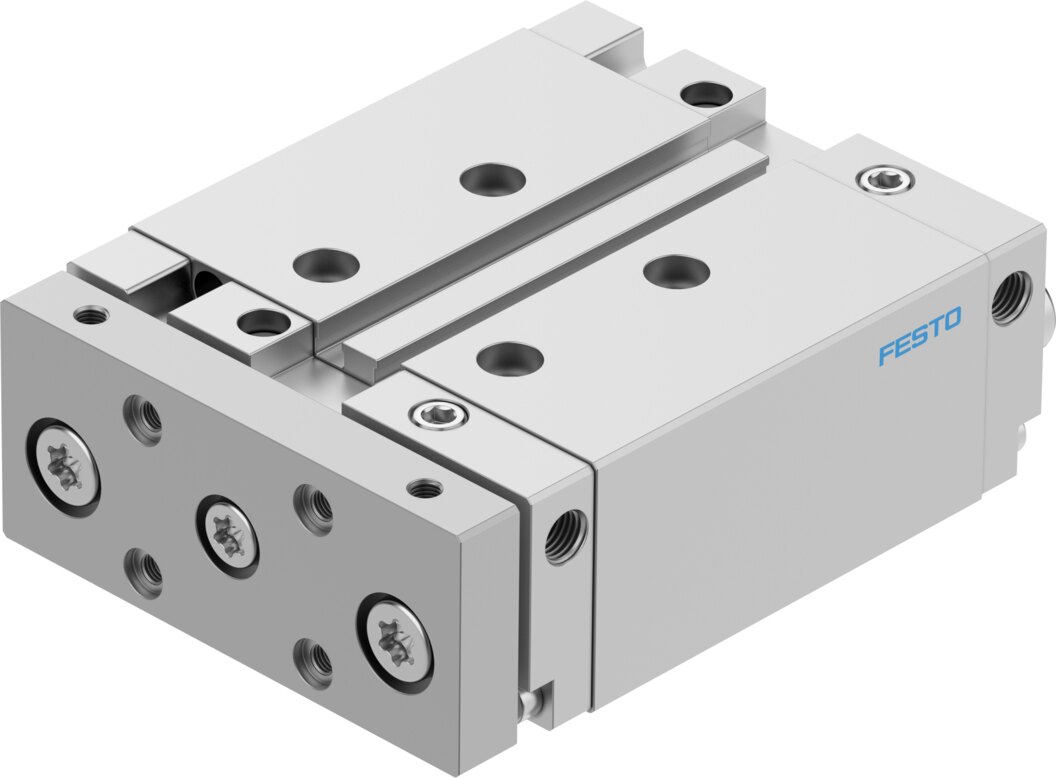

Festo DFM-32-50-B-PPV-A-GF Guided drive
Part number595430EAN / GTIN4052568402457HS code8412.31
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DFM-32-50-B-PPV-A-GF — Guided drive, drives with guide rods. stroke 50 mm; piston diameter 32 mm; operating pressure 0.15. 1 MPa.
Technical Specifications
- Manufacturer part number (MPN)
- 595430
- Type code
- DFM-32-50-B-PPV-A-GF
- EAN / GTIN
- 4052568402457
- Product category
- Drives with guide rods
- Stroke
- 50 mm
- Piston diameter
- 32 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Design
- Guidance
- Position detection
- Via proximity switch
- Operating pressure
- 0.15 ... 1 MPa
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.4 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 415 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 482 N
- alternative connections
- See product drawing
- Pneumatic connection
- G1/8
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 52.7019 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568402457
- MPN 595430
Product Documentation
Document preview: DFM-32-50-B-PPV-A-GF — Festo product documentation
More from Festo
Festo
Festo FRM-H-1-D-MAXI Branching module
162795
Festo
Festo LFR-3/8-D-MIDI-KD-A Service unit combination
185750
No image
Festo
Festo DSNU-20-100-P-A ISO cylinder
4052568009427
Festo
Festo DSNU-40-320-PPS-A Round cylinder
559314
Festo

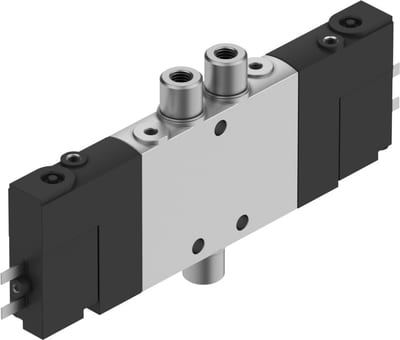

Festo CPE10-M1BH-5/3G-M5-B Solenoid valve
533159
Festo
Festo VUVS-L25-M32C-AD-G14-F8-1B2 Solenoid valve
575479
Festo
Festo DSNU-8-10-P-A ISO cylinder
19177
Festo
Festo LRS-1/4-D-MIDI Pressure regulator
194626
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 595430?
- 595430 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 595430.
- What is the HS code for 595430?
- The customs tariff (HS) code for 595430 is 8412.31.
- Who manufactures 595430?
- 595430 is a Festo product in the Pneumatics range.
- Is a datasheet available for 595430?
- Yes — the 595430 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 595430?
- The minimum order quantity is 1.
- Is 595430 available?
- Yes — 595430 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
