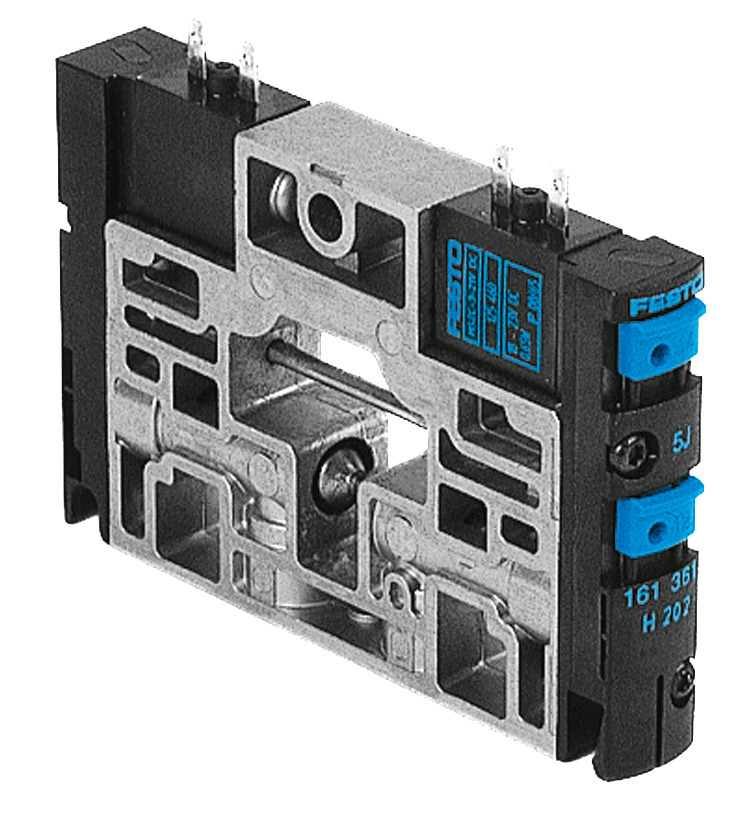

Festo CPV14 Solenoid Valve - El, Spring, CPV14-M1H-2X2-GLS-1/8
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPV14 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: activation El, return Spring, supplier type designation CPV14-M1H-2X2-GLS-1/8. Supplied under manufacturer part number 185883, EAN 4052568146160, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- 2x2/2 closed monostable
- Type of actuation
- Electrical
- Valve size
- 14 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 800 l/min
- pneumatic working port
- G1/8
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Pneumatic spring
- Degree of protection
- IP65
- Nominal size
- 6 mm
- Exhaust-air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting; Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External; Internal
- Flow direction
- Non-reversible
- Symbol
- 00991801
- lap
- Overlap
- Pilot pressure
- 0.3 ... 0.8 MPa (3 ... 8 bar)
- b value
- 0.37
- C value
- 3.2 l/sbar
- Switching time off
- 16 ms
- Switching time on
- 13 ms
- Duty cycle
- 100% in conjunction with holding current reduction
- Electrical power consumption
- 0.65 W
- Max. positive test pulse with 0 signal
- 1400 µs
- Max. negative test pulse with 1 signal
- 400 µs
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 40 °C
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 120 g
- Type of mounting
- With through-hole
- Pilot air port 12/14
- Common line
- Pilot exhaust port 82/84
- Common line
- Pneumatic connection, port 1
- Common line
- Pneumatic connection, port 11
- Common line
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection 3/5 combined
- Common line
- Pneumatic connection, port 4
- G1/8
- Material seals
- HNBR; NBR
- Material housing
- Die-cast aluminium; Brass; POM; PPS; Steel
- EAN / GTIN
- 4052568146160
- Festo type code
- CPV14-M1H-2X2-GLS-1/8
- Festo order number
- 185883
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 2.6080 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 185883
