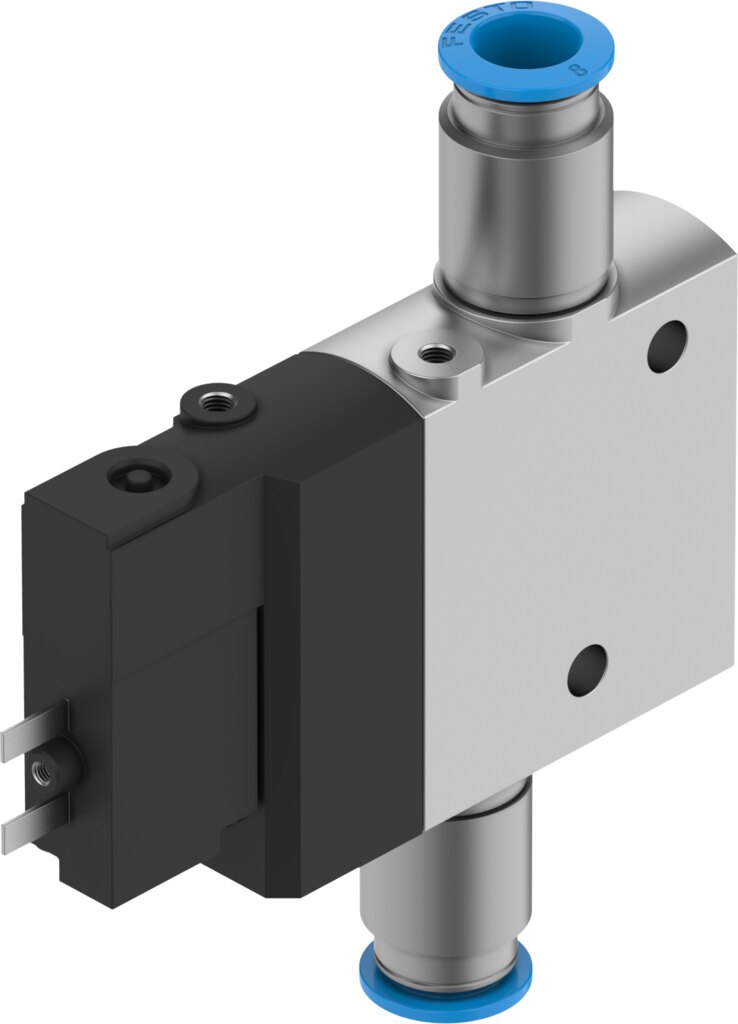

Festo CPE14-M1BH-3OL-QS-8 Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPE14-M1BH-3OL-QS-8 — Solenoid valve, valves and valve terminals. valve function 3/2-way, single solenoid, open; operating pressure 0.25. 0.8 MPa (2.5. 8 bar); nominal size 6 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 196892
- Type code
- CPE14-M1BH-3OL-QS-8
- EAN / GTIN
- 4052568159818
- Product category
- Valves and valve terminals
- Valve function
- 3/2-way, single solenoid, open
- Type of actuation
- Electrical
- Construction width
- 14 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 810 l/min
- pneumatic working port
- QS-8
- Operating voltage
- 24 V DC
- Operating pressure
- 0.25 ... 0.8 MPa (2.5 ... 8 bar)
- Design
- Piston gate valve
- Type of reset
- Pneumatic spring
- Approval
- c UL us - Recognised (Oil)
- Maritime classification
- See certificate
- Certificate issuing authority
- UL MH19482
- Degree of protection
- IP65, with plug socket, To IEC 60529
- Nominal size
- 6 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991656
- Valve position code
- Label holder
- lap
- Overlap
- Switching time off
- 27 ms
- Switching time on
- 16 ms
- Duty cycle
- 100% in conjunction with holding current reduction
- Max. positive test pulse with 0 signal
- 1200 µs
- Max. negative test pulse with 1 signal
- 900 µs
- Characteristic coil data
- 24 V DC: 1.28 W
- Permissible voltage fluctuations
- -15% / +10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Electrical connection
- 2-pin
- Type of mounting
- With through-hole
- Pilot exhaust port 82
- M3
- Pilot air port 12
- M3
- Pneumatic connection, port 1
- QS-8
- Pneumatic connection, port 2
- QS-8
- Pneumatic connection, port 3
- G1/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- QS-8"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 1.8449 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568159818
- MPN 196892
Product Documentation
More from Festo
Festo
Festo NPQH-LL-G18-Q4-P10 Push-in L-fitting, long
578263
Festo
Festo HUA-100 Foot mounting
157317
Festo
Festo CPV10-M1H-2X2-GLS-K-M7 Solenoid valve
559645
Festo

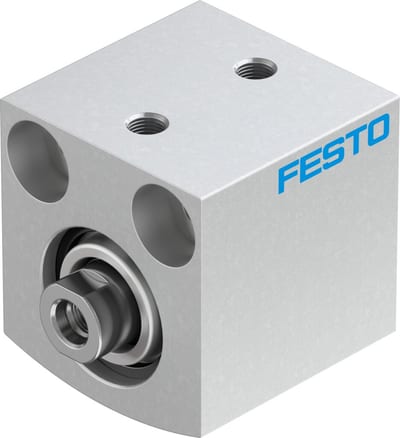

Festo ADVC Short stroke cylinder - 20mm, M5, 10mm, ADVC-20-10-I-P
