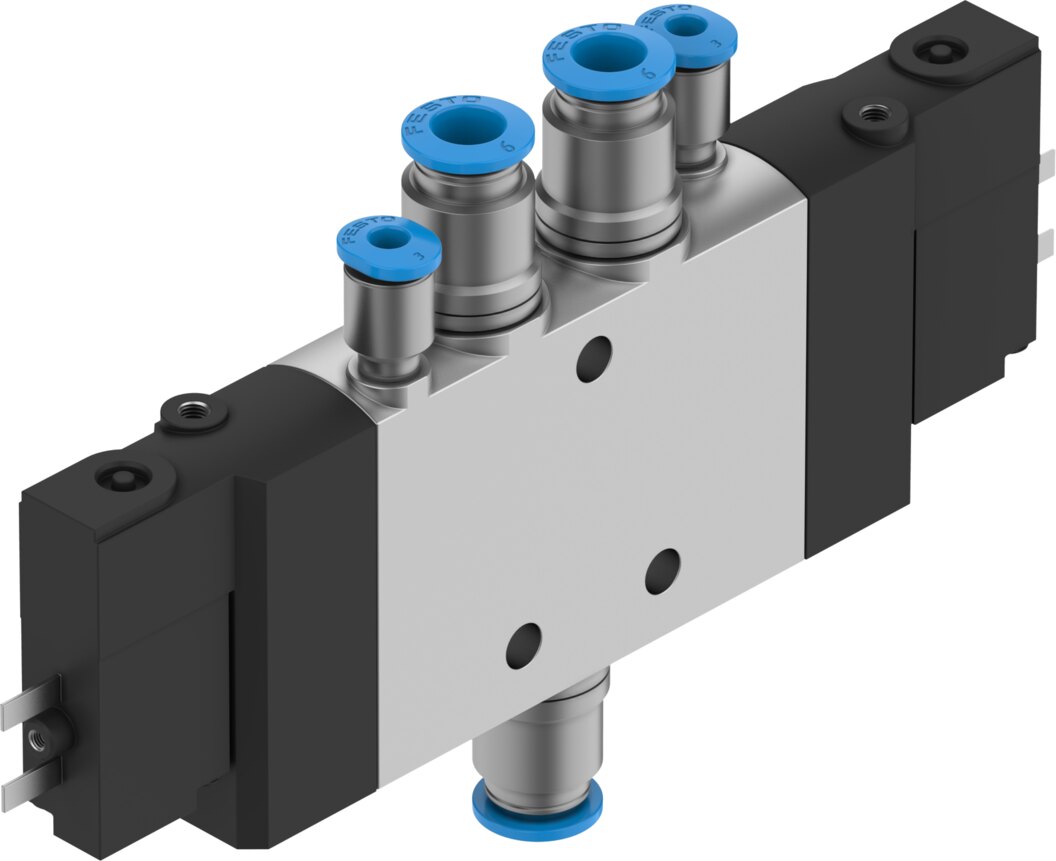

Festo CPE14-M1BH-5JS-QS-6 Solenoid valve

Festo CPE14-M1BH-5JS-QS-6 — Solenoid valve, valves and valve terminals. valve function 5/2-way, double solenoid; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 6 mm.

Manufacturer part number (MPN)

196909

Type code

CPE14-M1BH-5JS-QS-6

EAN / GTIN

4052568159979

Product category

Valves and valve terminals

Valve function

5/2-way, double solenoid

Type of actuation

Electrical

Construction width

14 mm

Standard nominal flow rate (standardised to DIN 1343)

400 l/min

pneumatic working port

QS-6

Operating voltage

24 V DC

Operating pressure

-0.09 ... 1 MPa (-0.9 ... 10 bar)

Design

Piston gate valve

Approval

c UL us - Recognised (Oil)

Maritime classification

See certificate

Certificate issuing authority

UL MH19482

Degree of protection

IP65, with plug socket, To IEC 60529

Nominal size

6 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

Detenting via accessory, Non-detenting

Type of piloting

Piloted

Pilot air supply

External

Flow direction

Reversible

Symbol

00991016

Valve position code

Label holder

lap

Overlap

Pilot pressure

0.2 ... 0.8 MPa (2 ... 8 bar)

Switching time reversal

13 ms

Duty cycle

100% in conjunction with holding current reduction

Max. positive test pulse with 0 signal

1200 µs

Max. negative test pulse with 1 signal

900 µs

Characteristic coil data

24 V DC: 1.28 W

Permissible voltage fluctuations

-15% / +10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-5 ... 50 °C

Pilot medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature

-5 ... 50 °C

Electrical connection

2-pin

Type of mounting

With through-hole

Pilot exhaust port 82

M3

Pilot exhaust port 84

M3

Pilot air port 12

M3

Pilot air port 14

M3

Pneumatic connection, port 1

QS-6

Pneumatic connection, port 2

QS-6

Pneumatic connection, port 3

G1/8

Pneumatic connection, port 4

QS-6

Pneumatic connection, port 5

G1/8

Material seals

NBR

Material housing

Die-cast aluminium

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Thread

QS-6"

Activation

El

Carbon footprint (EPD)

2.3244 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20
