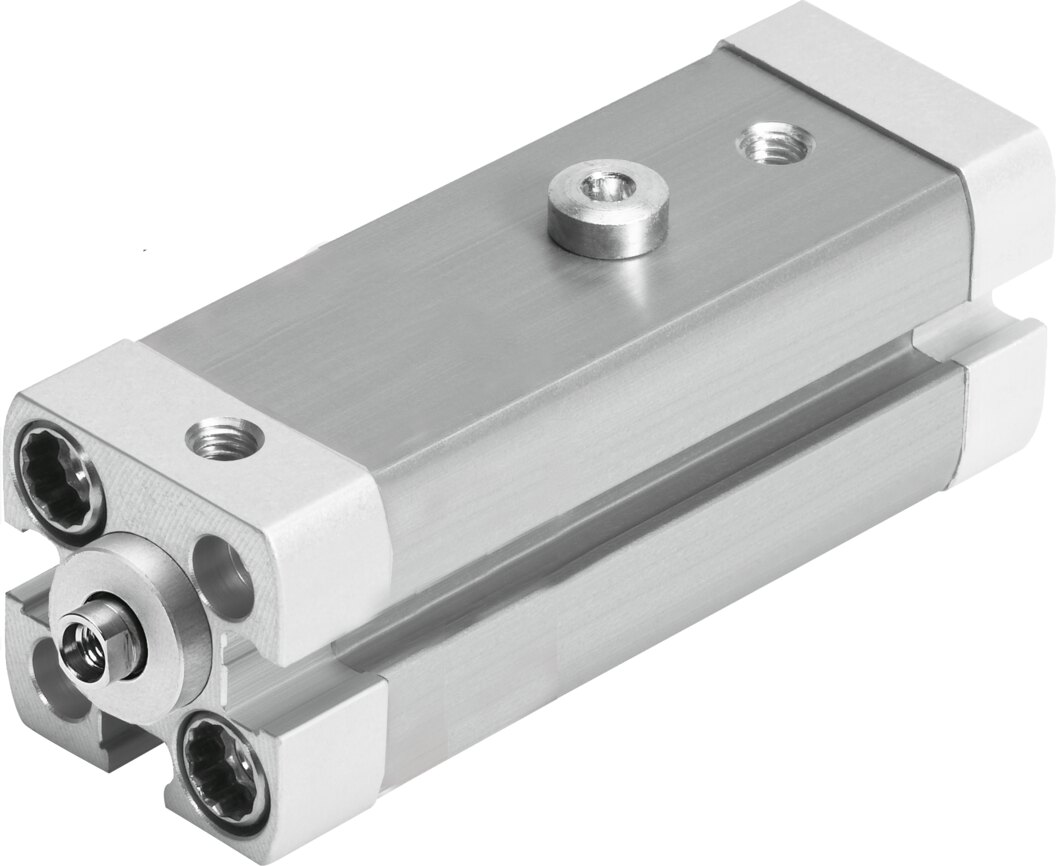

Festo CLR-25-10-R-P-A-K11-R8 Linear/swivel clamp
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CLR-25-10-R-P-A-K11-R8 — Linear/swivel clamp, swing clamp cylinders. piston diameter 25 mm; operating pressure 2. 10 bar.
Technical Specifications
- Manufacturer part number (MPN)
- 535483
- Type code
- CLR-25-10-R-P-A-K11-R8
- EAN / GTIN
- 4052568168995
- Product category
- Swing clamp cylinders
- Total stroke
- 23 mm
- Piston diameter
- 25 mm
- Piston rod thread
- M6
- Swivel angle
- 90 deg +/-3 deg
- Clamping stroke
- 10 mm
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston, Piston rod, Cylinder barrel
- Position detection
- Via proximity switch
- Swivel direction
- right
- Symbol
- 00991217
- Variants
- Weld spatter protection, Dust protection
- Operating pressure
- 2 ... 10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 ... 80 °C
- Effective clamping force at 0.2 MPa (2 bar, 29 psi)
- 63 N
- Effective clamping force at 0.4 MPa (4 bar, 58 psi)
- 127 N
- Effective clamping force at 0.6 MPa (6 bar, 87 psi)
- 188 N
- Max. tightening torque Clamping finger screw
- 12 Nm
- Theoretical clamping force at 0.6 MPa (6 bar, 87 psi)
- 227 N
- Product weight
- 410 g
- Type of mounting
- With through-hole, with female thread, with accessories
- Pneumatic connection
- M5
- Material wiper
- PPS
- Material collar screws
- Steel, Galvanised
- Material cover
- Wrought aluminium alloy, coated
- Material seals
- NBR, TPE-U(PU)
- Material housing
- Smooth-anodised
- Material piston rod
- coated, High-alloy stainless steel
- Material cylinder barrel
- Wrought aluminium alloy, Smooth-anodised
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 7.5185 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84799070
- HS code
- 8479.90
Standards & Compliance
- HS Code
- 8479.90
Cross References
- EAN 4052568168995
- MPN 535483
