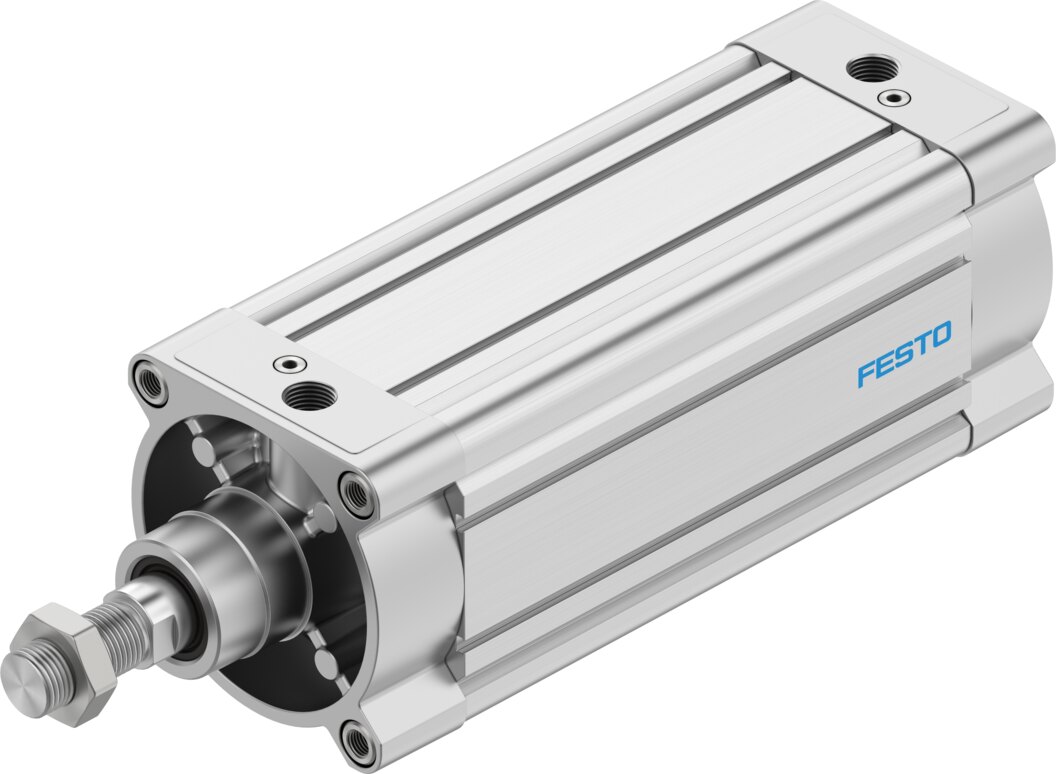

Festo DSBC-125-200-D3-PPVA-N3 Standards-based cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSBC-125-200-D3-PPVA-N3 — Standards-based cylinder, profile cylinder and tie rod cylinder. stroke 200 mm; piston diameter 125 mm; operating pressure 0.02. 1 MPa (0.2. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 8165668
- Type code
- DSBC-125-200-D3-PPVA-N3
- EAN / GTIN
- 4052568598204
- Product category
- Profile cylinder and tie rod cylinder
- Stroke
- 200 mm
- Piston diameter
- 125 mm
- Piston rod thread
- M27x2
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston-rod end
- Male thread
- Design
- Piston, Piston rod, Profile barrel
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Variants
- Piston rod at one end
- Operating pressure
- 0.02 ... 1 MPa (0.2 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 3.3 J
- Cushioning length
- 45 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 6881 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 7363 N
- Moving mass
- 3505 g
- Moving mass for 0 mm stroke
- 2245 g
- Additional moving mass per 10 mm stroke
- 63 g
- Product weight
- 11707 g
- Basic weight for 0 mm stroke
- 6768 g
- Additional weight per 10 mm stroke
- 247 g
- Type of mounting
- With female thread, with accessories
- Pneumatic connection
- G1/2
- Material cover
- Coated die-cast aluminium
- Material piston seal
- TPE-U(PU)
- Material piston
- Wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material piston rod wiper
- TPE-U(PU)
- Buffer seal material
- TPE-U(PU)
- Material of cushioning boss
- POM
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Material nut
- Galvanised steel
- Material rod wiper
- TPE-E
- Material bearing
- Metal polymer compound
- Material collar screws
- Galvanised steel
- Product type
- Pneumatics VDMA air cylinder
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 149.7552 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568598204
- MPN 8165668
Product Documentation
More from Festo
Festo
Festo VL-5/3G-1/8-B-EX Pneumatic valve
536046
Festo
Festo ADVC Short stroke cylinder - 100mm, G1/4, 10mm, ADVC-100-10-A-P
188344
Festo
Festo VABM-B10-20-G38-3-P53-E Common supply manifold
576415
Festo
Festo ADVUL-63-80-P-A Compact cylinder
156911
Festo
Festo QSMT-4 Push-in T-connector
153366
Festo
Festo LFMBA-3/8-D-MINI-DA-A Filter combination
532875
Festo

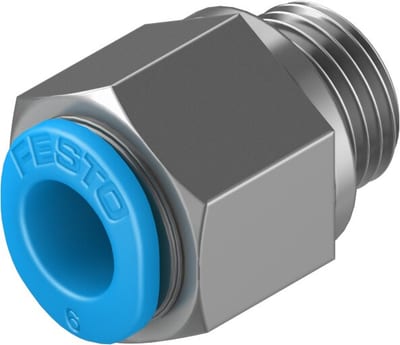

Festo QSM-G1/8-6 Push-in fitting
186265
Festo

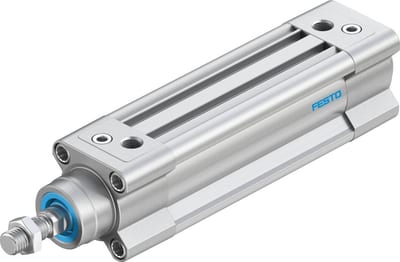

Festo DSBC-32-70-PPVA-N3 ISO cylinder
