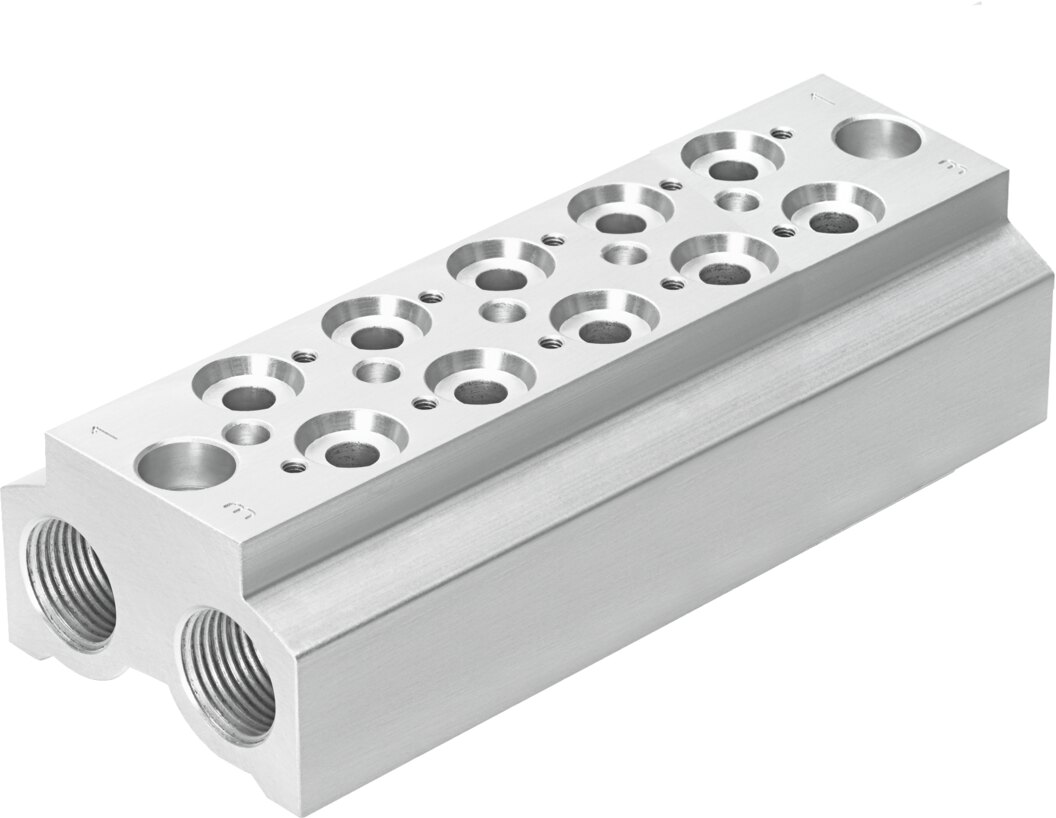

Festo CPE14-3/2-PRS-3/8-5-NPT Manifold block

Festo CPE14-3/2-PRS-3/8-5-NPT — Manifold block, valves and valve terminals. operating pressure -0.09. 1 MPa (-0.9. 10 bar).

Manufacturer part number (MPN)

550613

Type code

CPE14-3/2-PRS-3/8-5-NPT

EAN / GTIN

4052568094447

Product category

Valves and valve terminals

Grid dimension

20 mm

Mounting position

Any

Max. number of valve positions

5

Max. number of pressure zones

2

Burst pressure

5 MPa (50 bar; 725 psi)

Operating pressure

-0.09 ... 1 MPa (-0.9 ... 10 bar)

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-5 ... 50 °C

Ambient temperature

-5 ... 50 °C

Max. tightening torque for valve mounting

1.22 Nm

Product weight

329.427 g

Type of mounting in-line valve manifold

With through-hole

Mounting method for valve

With female thread

Pneumatic connection, port 1

3/8 NPT

Pneumatic connection, port 3

3/8 NPT

Pneumatic connection, port 5

3/8 NPT

Material manifold rail

Wrought aluminium alloy

Product type

Pneumatic ISO accessories

Product group

Pneumatics

Thread

3/8"

Carbon footprint (EPD)

6.3932 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84819000

HS code

8481.90

HS Code

8481.90

• EAN 4052568094447
• MPN 550613
