Festo AEVU-32-20-A-P-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo AEVU-32-20-A-P-A — Compact cylinder, pneumatic cylinders. stroke 20 mm; piston diameter 32 mm; operating pressure 0.08. 1 MPa (0.8. 10 bar; 11.6. 145 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 156999
- Type code
- AEVU-32-20-A-P-A
- EAN / GTIN
- 4052568122355
- Product category
- Pneumatic cylinders
- Stroke
- 20 mm
- Piston diameter
- 32 mm
- Piston rod thread
- M10x1.25
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Pushing, Single-acting
- Piston-rod end
- Male thread
- Design
- Piston, Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991729
- Variants
- Piston rod at one end
- Operating pressure
- 0.08 ... 1 MPa (0.8 ... 10 bar; 11.6 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.4 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 450 N
- Moving mass for 0 mm stroke
- 49 g
- Additional moving mass per 10 mm stroke
- 9 g
- Basic weight for 0 mm stroke
- 300 g
- Additional weight per 10 mm stroke
- 40 g
- Type of mounting
- With through-hole, with accessories
- Pneumatic connection
- G1/8
- Material collar screws
- Galvanised steel
- Material cover
- Wrought aluminium alloy
- Material dynamic seals
- NBR, TPE-U(PU)
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- Wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 5.4877 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568122355
- MPN 156999
Product Documentation
More from Festo
Festo
Festo QSLL-G1/8-8 Push-in L-fitting, long
186130
Festo
Festo ADVC Short stroke cylinder - 32mm, G1/8, 15mm, ADVC-32-15-A-P
188221
Festo
Festo LRS-1/4-D-O-MINI Pressure regulator
194612
Festo
Festo VACF-B-C1-16B Solenoid coil
8030815
Festo

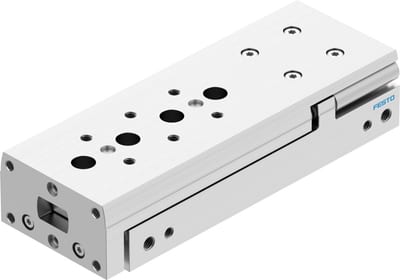

Festo DGST-10-80-PA Mini slide
8085121
Festo

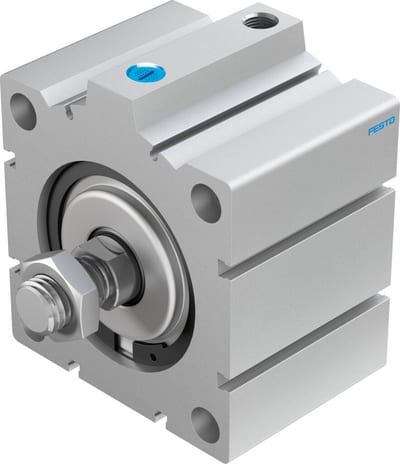

Festo AEVC Short stroke cylinder - 100mm, G1/4, 25mm, AEVC-100-25-A-P-A
188329
Festo

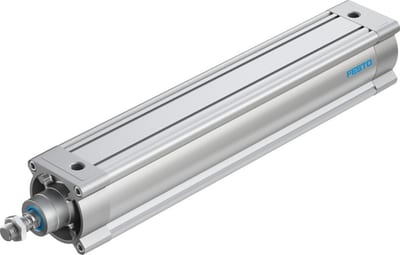

Festo DSBC-100-500-PPSA-N3 ISO cylinder
