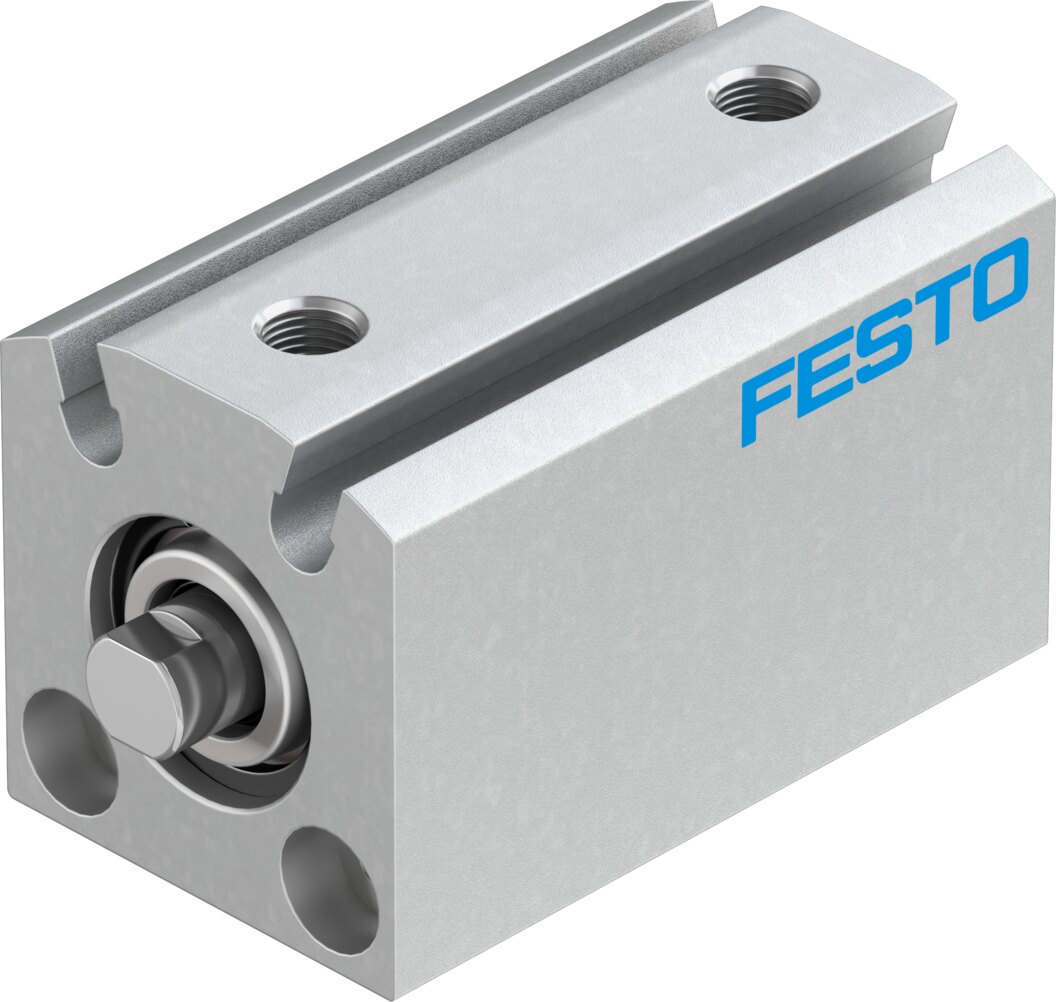

Festo ADVC-12-10-P-A Short-stroke cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADVC-12-10-P-A — Short-stroke cylinder, pneumatic cylinders. stroke 10 mm; piston diameter 12 mm; operating pressure 0.1. 1 MPa (1. 10 bar; 14.5. 145 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 530573
- Type code
- ADVC-12-10-P-A
- EAN / GTIN
- 4052568085872
- Product category
- Pneumatic cylinders
- Lifecycle status
- Phase-out
- Stroke
- 10 mm
- Piston diameter
- 12 mm
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Design
- Piston, Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar; 14.5 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 51 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 68 N
- Moving mass
- 9.6 g
- Product weight
- 64 g
- Type of mounting
- With through-hole, with accessories
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy, anodised
- Material seals
- TPE-U(PU)
- Material housing
- anodised
- Material piston rod
- High-alloy steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 1.3018 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568085872
- MPN 530573
