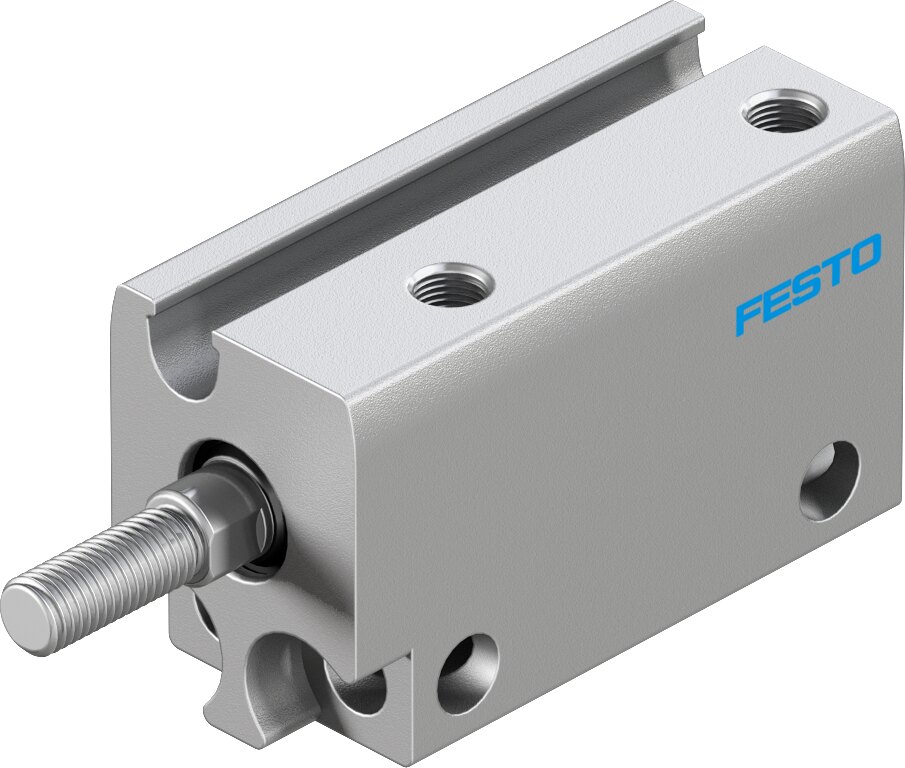

Festo ADN-S-6-10-A-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADN-S-6-10-A-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 10 mm; piston diameter 6 mm; operating pressure 0.2. 0.8 MPa (2. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 8080595
- Type code
- ADN-S-6-10-A-A
- EAN / GTIN
- 4052568447502
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 10 mm
- Piston diameter
- 6 mm
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston-rod end
- Male thread
- Design
- Piston, Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991216
- Variants
- Piston rod at one end
- Operating pressure
- 0.2 ... 0.8 MPa (2 ... 8 bar)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 ... 60 °C
- Impact energy in end positions
- 0.006 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 9.4 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 17 N
- Moving mass
- 2.4 g
- Product weight
- 15 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Material cover
- Wrought aluminium alloy
- Material dynamic seals
- NBR, TPE-U(PU)
- Material housing
- anodised
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M3
- Carbon footprint (EPD)
- 0.3086 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568447502
- MPN 8080595
