Festo
Festo LFR-1/2-D-5M-O-MIDI Filter regulator
Part number192615EAN / GTIN4052568152581HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LFR-1/2-D-5M-O-MIDI — Filter regulator, compressed air preparation. operating pressure 0.1. 1.6 MPa (1. 16 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 192615
- Type code
- LFR-1/2-D-5M-O-MIDI
- EAN / GTIN
- 4052568152581
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical +/-5°
- Grade of filtration
- 5 µm
- Condensate drain
- Manual, rotating
- Design
- Filter regulator without pressure gauge
- Max. condensate volume
- 43 ml
- Bowl guard
- Metal bowl guard
- Symbol
- 00991586
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- Prepared for G1/4
- Operating pressure
- 0.1 ... 1.6 MPa (1 ... 16 bar)
- Pressure regulation range
- 0.5 ... 12 bar
- Max. pressure hysteresis
- 0.2 bar
- Standard nominal flow rate (standardised to DIN 1343)
- 2600 l/min
- Operating medium
- Inert gas
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 ... 60 °C
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [6:8:4], Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 900 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Material housing
- Die-cast zinc
- Material bowl
- Makrolon®
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/2"
- Press Area
- 0.5 to 12 bar
- Filter element
- 5 My
- Carbon footprint (EPD)
- 21.5670 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568152581
- MPN 192615
Product Documentation
Document preview: LFR-1/2-D-5M-O-MIDI — Festo product documentation
More from Festo
Festo
Festo CPE24-M1H-5JS-3/8 Solenoid valve
163171
Festo
Festo VUVS-L20-M32C-AD-G18-F7-1C1 Solenoid valve
575269
Festo
Festo FK-M10 Self-aligning rod coupler
4052568000035
Festo
Festo DFM-80-125-P-A-KF Guided drive
170964
Festo
Festo MFH-5-1/8-L-B-EX Solenoid valve
535921
Festo
Festo ADVC Short stroke cylinder - 40mm, G1/8, 20mm, ADVC-40-20-I-P
188240
Festo
Festo ADN-40-25-A-PPS-A Compact cylinder
572676
Festo

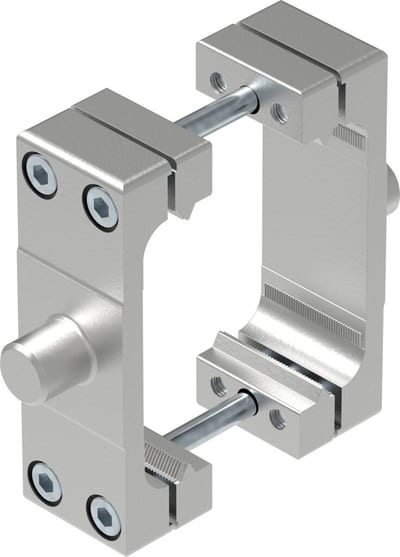

Festo DAMT-V1-80-A Trunnion mounting kit
