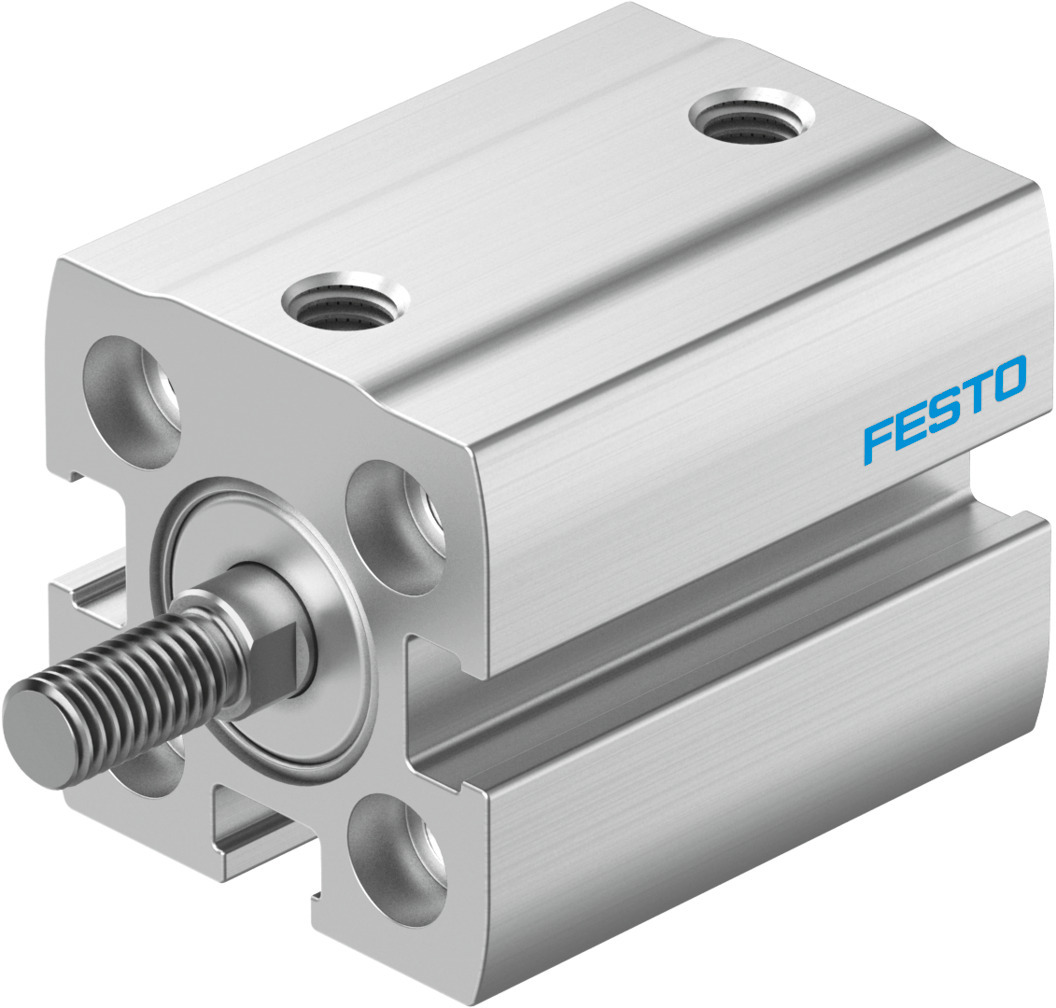

Festo ADN-S-12-10-A-P-A Compact cylinder

Festo ADN-S-12-10-A-P-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 10 mm; piston diameter 12 mm; operating pressure 0.1. 1 MPa (1. 10 bar).

Manufacturer part number (MPN)

8091424

Type code

ADN-S-12-10-A-P-A

EAN / GTIN

4052568301286

Product category

Compact pneumatic cylinders, short-stroke and flat cylinders

Stroke

10 mm

Piston diameter

12 mm

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Mode of operation

Double-acting

Piston-rod end

Male thread

Design

Piston, Piston rod

Position detection

Via proximity switch

Symbol

00991217

Variants

Piston rod at one end

Operating pressure

0.1 ... 1 MPa (1 ... 10 bar)

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 5 according to ISO 14644-1

Ambient temperature

0 ... 80 °C

Impact energy in end positions

0.07 J

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

51 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

68 N

Moving mass for 0 mm stroke

6 g

Additional moving mass per 10 mm stroke

2 g

Basic weight for 0 mm stroke

33 g

Additional weight per 10 mm stroke

15 g

Type of mounting

With through-hole, with female thread, with accessories

Pneumatic connection

M5

Material cover

Anodised wrought aluminium alloy

Material dynamic seals

NBR, TPE-U(PU)

Material housing

Anodised wrought aluminium alloy

Material piston rod

High-alloy stainless steel

Product type

Pneumatic ISO compact air cylinders

Product group

Pneumatics

Port Size

M5

Carbon footprint (EPD)

0.5991 kg CO2e per pcs

Country of origin

China

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31

• EAN 4052568301286
• MPN 8091424
