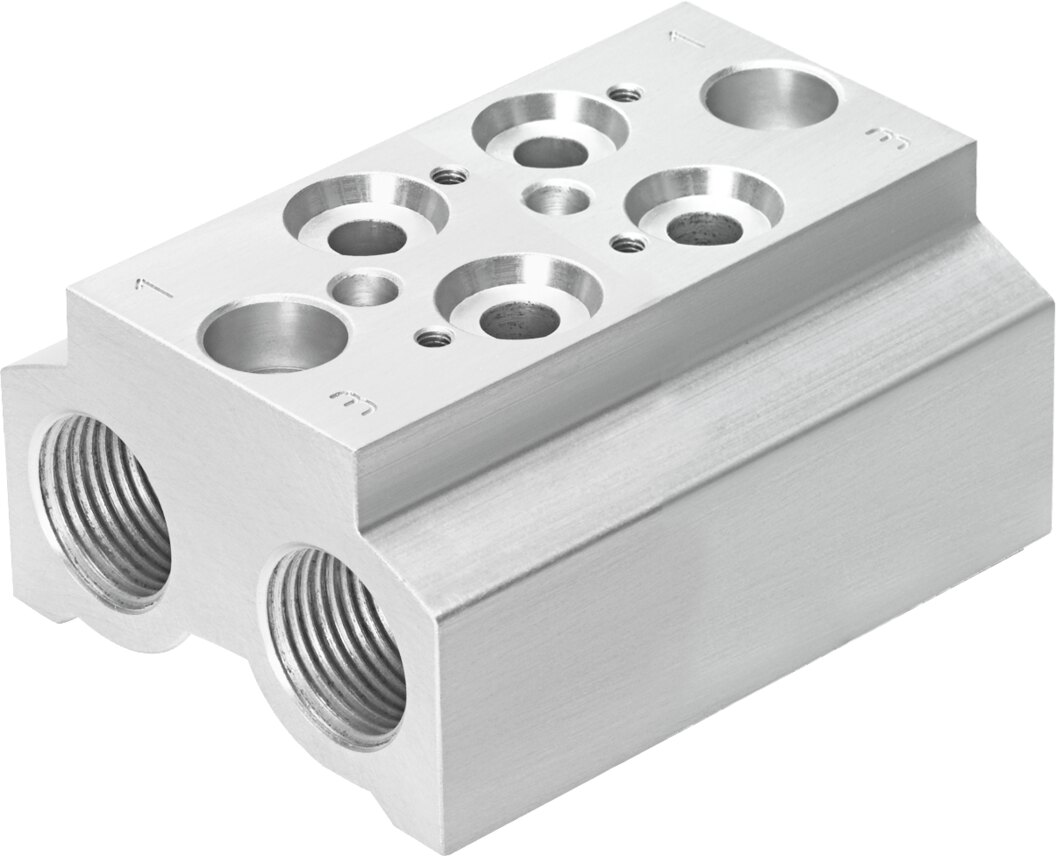

Festo CPE10-3/2-PRS-1/4-2-NPT Manifold block

Festo CPE10-3/2-PRS-1/4-2-NPT — Manifold block, valves and valve terminals. operating pressure -0.09. 1 MPa (-0.9. 10 bar).

Manufacturer part number (MPN)

550601

Type code

CPE10-3/2-PRS-1/4-2-NPT

EAN / GTIN

4052568052188

Product category

Valves and valve terminals

Grid dimension

16 mm

Mounting position

Any

Max. number of valve positions

2

Max. number of pressure zones

2

Burst pressure

5 MPa (50 bar; 725 psi)

Operating pressure

-0.09 ... 1 MPa (-0.9 ... 10 bar)

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-5 ... 50 °C

Ambient temperature

-5 ... 50 °C

Max. tightening torque for valve mounting

1.22 Nm

Product weight

127.008 g

Type of mounting in-line valve manifold

With through-hole

Mounting method for valve

With female thread

Pneumatic connection, port 1

1/4 NPT

Pneumatic connection, port 3

1/4 NPT

Pneumatic connection, port 5

1/4 NPT

Material manifold rail

Wrought aluminium alloy

Product type

Pneumatic ISO accessories

Product group

Pneumatics

Thread

1/4"

Carbon footprint (EPD)

3.7980 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84819000

HS code

8481.90

HS Code

8481.90

• EAN 4052568052188
• MPN 550601
