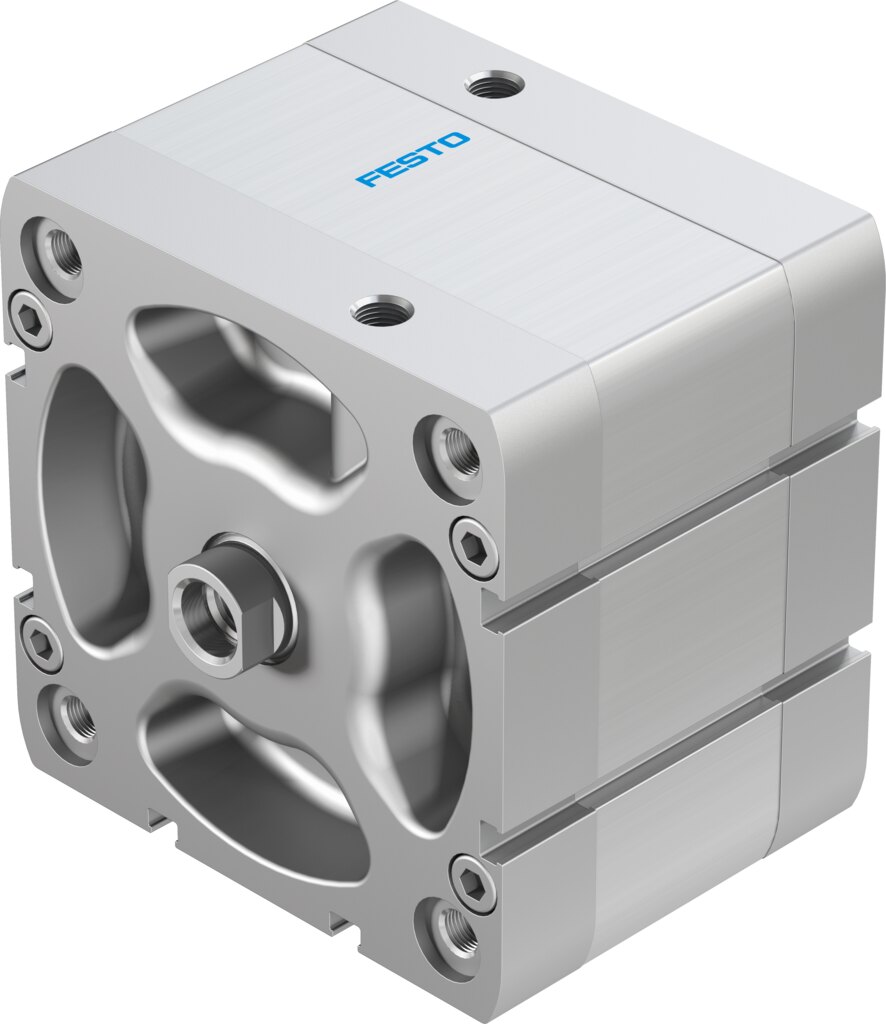

Festo ADN-100-20-I-PPS-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADN-100-20-I-PPS-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 20 mm; piston diameter 100 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 577192
- Type code
- ADN-100-20-I-PPS-A
- EAN / GTIN
- 4052568225476
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 20 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M12
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston-rod end
- Female thread
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 2.5 J
- Cushioning length
- 10 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 4524 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 4712 N
- Moving mass
- 532 g
- Product weight
- 1826 g
- Type of mounting
- With through-hole, with female thread, with accessories
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Coated die-cast aluminium
- Material seals
- TPE-U(PUR)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 34.0759 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568225476
- MPN 577192
Product Documentation
More from Festo
Festo
Festo VUVG-L14-B52-T-G18-1R8L Solenoid valve
574230
Festo
Festo ADVU-50-30-P-A Compact cylinder
156554
Festo
Festo CPE14-M1BH-5/3G-1/8 Solenoid valve
196937
Festo
Festo VABM-L1-14G-G14-8-GR Manifold rail
573493
Festo
Festo DSBC-50-300-PPSA-N3 ISO cylinder
2102633
Festo
Festo VUVG-B14-P53C-ZT-F-1R8L Solenoid valve
574247
Festo
Festo DAMT-V1-40-A Trunnion mounting kit
2214899
Festo
Festo DSNU-25-250-PPS-A ISO cylinder
559290
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 577192?
- 577192 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 577192.
- What is the HS code for 577192?
- The customs tariff (HS) code for 577192 is 8412.31.
- Who manufactures 577192?
- 577192 is a Festo product in the Pneumatics range.
- Is a datasheet available for 577192?
- Yes — the 577192 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 577192?
- The minimum order quantity is 1.
- Is 577192 available?
- Yes — 577192 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
