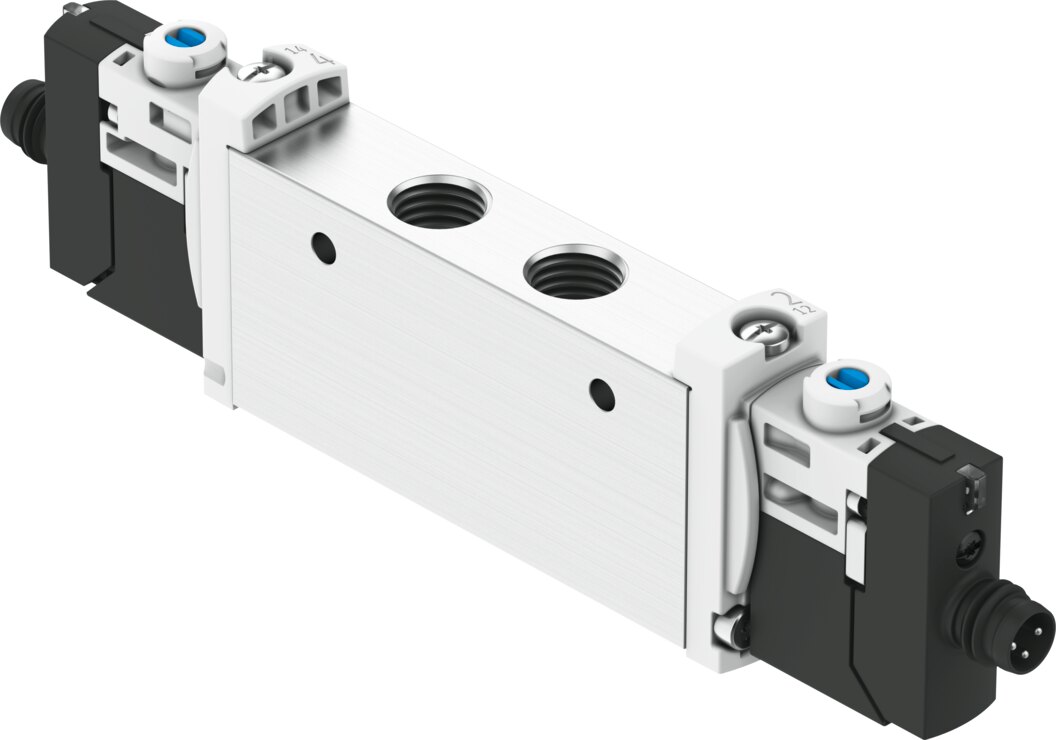

Festo VUVG-L14-B52-T-G18-1R8L Solenoid valve

Festo VUVG-L14-B52-T-G18-1R8L — Solenoid valve, universal directional control valves. valve function 5/2-way, double solenoid; operating pressure 0.15. 0.8 MPa (1.5. 8 bar); nominal size 5.6 mm.

Manufacturer part number (MPN)

574230

Type code

VUVG-L14-B52-T-G18-1R8L

EAN / GTIN

4052568222376

Product category

Universal directional control valves

Valve function

5/2-way, double solenoid

Type of actuation

Electrical

Valve size

14 mm

Standard nominal flow rate (standardised to DIN 1343)

700 ... 780 l/min

pneumatic working port

G1/8

Operating voltage

24 V DC

Operating pressure

0.15 ... 0.8 MPa (1.5 ... 8 bar)

Design

Piston gate valve

Approval

RCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)

To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)

To UK RoHS instructions, To UK regulations for electrical equipment

Degree of protection

IP65, with plug socket

Nominal size

5.6 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

Detenting, Non-detenting, Concealed

Type of piloting

Piloted

Pilot air supply

Internal

Symbol

00992897

lap

Overlap

Pilot pressure

0.15 ... 0.8 MPa (1.5 ... 8 bar)

Suitability for vacuum

No

Switching time reversal

8 ms

Duty cycle

100%

Max. positive test pulse with 0 signal

700 µs

Max. negative test pulse with 1 signal

900 µs

Characteristic coil data

24 V DC: 1.0 W

Permissible voltage fluctuations

+/-10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Restrictions for environmental and media temperature

-5 - 50 °C, without holding current reduction

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 5 according to ISO 14644-1

Media temperature

-5 ... 60 °C

Ambient temperature

-5 ... 60 °C

Product weight

89 g

Electrical connection

3-pin, M8x1 A-encoded to EN 61076-2-104, Plug

Type of mounting

On manifold rail, with through-hole

Pneumatic connection, port 1

G1/8

Pneumatic connection, port 2

G1/8

Pneumatic connection, port 3

G1/8

Pneumatic connection, port 4

G1/8

Pneumatic connection, port 5

G1/8

Material seals

HNBR, NBR

Material housing

Wrought aluminium alloy

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Thread

G1/8"

Activation

El

Carbon footprint (EPD)

2.0234 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20
