Esylux

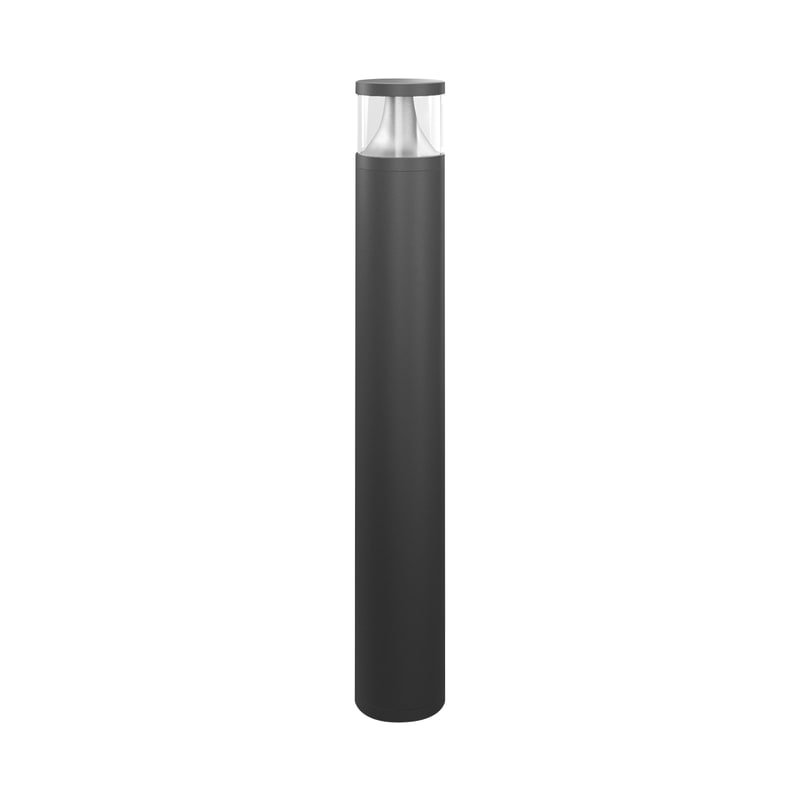

ALVA BL OF 700 7W 3K AN CLE On/Off
Part numberEL10821134EAN / GTIN4015120821134HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux EL10821134 BOLLARD ALVA 360° 700 / 100 7W 3000K ANTH. CLEAR ON/OFF.
Technical Specifications
- Manufacturer part number (MPN)
- EL10821134
- EAN / GTIN
- 4015120821134
- Sales unit
- pcs
- Power
- 7 W
- Protection class according to IEC 61140
- I
- Height
- 700 mm
- Lamp holder
- None
- Conductor cross section
- 2.5 mm²
- With base plate
- Yes
- Connection type
- Push-in clamp
- Housing colour
- Grey
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Max. lamp power
- 7 W
- Suitable for lamp power
- 6.5 W
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Diameter
- 100 mm
- With light sensor
- No
- Number of poles
- 5
- Height/depth
- 700 mm
- Type of power supply
- Mains power supply
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Direct
- Light distribution
- Symmetric
- Material cover
- Plastic, transparent
- Impact strength
- IK09
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Beam angle
- > 80° - Extreme wide beam
- Nominal current
- 27 mA
- Max. system power
- 7 W
- Rated luminous flux according to IEC 62722-2-1
- 530 lm
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 4015120821134
- SAP 1200139367
- Code 82035542
Product Documentation
Document preview: ALVA BL OF 700 7W 3K AN CLE On/Off (EL10821134) — Specification sheet
