Esylux

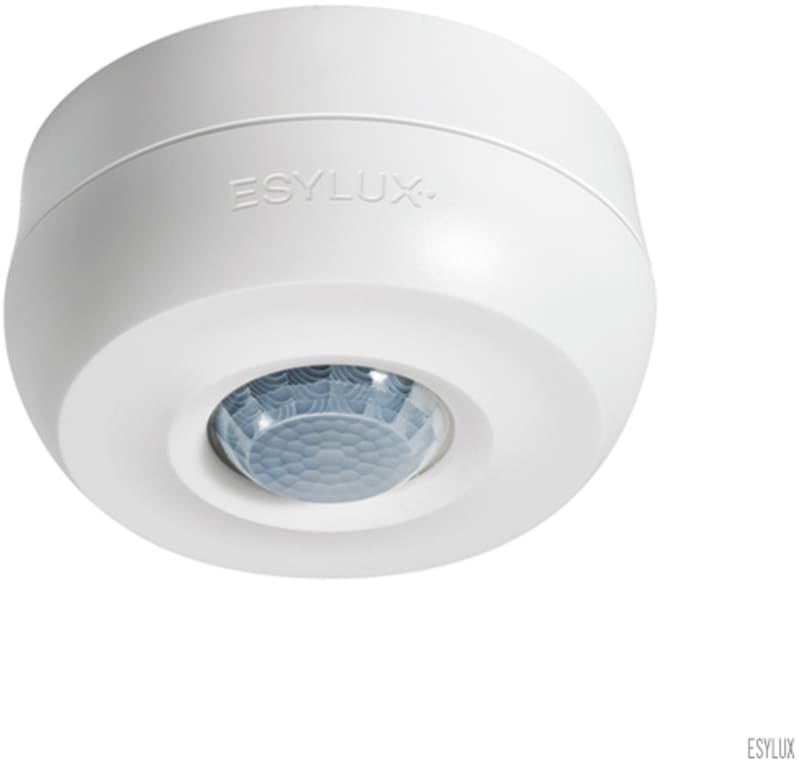

MD 360I/8 Basic SMB white
Part numberEB10430466EAN / GTIN4015120430466HS code8536.50
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux EB10430466 ceiling-mounted motion detector 360° for surface mounting, range approx. Ø 8 m, remote-controlled.
Technical Specifications
- Manufacturer part number (MPN)
- EB10430466
- EAN / GTIN
- 4015120430466
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- White
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 50 mm
- Depth
- 50 mm
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Switching-on delay
- 30 s
- Frequency
- 50 Hz
- With remote control
- No
- Diameter
- 101 mm
- Suitable for wall mounting
- No
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 3 m
- Max. reach sideways
- 4 m
- Max. switching power
- 2300 W
- Temperature
- 0–50 °C
- Max. starting current
- 78 A
- Material
- Plastic
- Ambient temperature
- -25–50 °C
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 5–1000 lx
- Suitable for C-load
- Yes
- Diameter reach on floor
- 8 m
- Remote operation
- Yes
- HVAC-control
- No
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015120430466
- SAP 1000698733
- Code 8138343
Product Documentation
Document preview: MD 360I/8 Basic SMB white (EB10430466) — Specification sheet
More from Esylux
Esylux
ELSA-2 225 OP 840 MD PS DALI
EO10299667
Esylux
OFL Basic 10 W 3 K WH
EL10810787
Esylux
SLF LEDi SC/C Surface-mounted
EN10061837
Esylux
OL 100 LED 5K white (EL10710001)
Esylux
Cable SAT RJ45 5M X4
EC10431906
Esylux
Enclosure IP20-EXX2 white
EP10427848
Esylux
Detector PD-ATMO 360I/8 O AUX 30 V KNX
EP10427664
Esylux
OFL Basic 10 W 3 K BK
EL10810794
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
