Esylux
ALVA BL OF 940 16W 4K MIL On/Off
Part numberEL10820663EAN / GTIN4015120820663HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux EL10820663 BOLLARD ALVA 180° 940 / 170 16 W 4000 K ANTHRACITE MILKY ON/OFF.
Technical Specifications
- Manufacturer part number (MPN)
- EL10820663
- EAN / GTIN
- 4015120820663
- Sales unit
- pcs
- Power
- 16 W
- Protection class according to IEC 61140
- I
- Height
- 940 mm
- Lamp holder
- None
- Conductor cross section
- 2.5 mm²
- With base plate
- Yes
- Connection type
- Push-in clamp
- Housing colour
- Grey
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Max. lamp power
- 15 W
- Suitable for lamp power
- 14.3 W
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Diameter
- 170 mm
- With light sensor
- No
- Number of poles
- 3
- Height/depth
- 940 mm
- Type of power supply
- Mains power supply
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Direct
- Light distribution
- Symmetric
- Material cover
- Plastic, opal
- Impact strength
- IK10
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Beam angle
- > 80° - Extreme wide beam
- Nominal current
- 73–88 mA
- Max. system power
- 16 W
- Rated luminous flux according to IEC 62722-2-1
- 630 lm
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 4015120820663
- SAP 1200236069
- Code 82207461
Product Documentation
Document preview: ALVA BL OF 940 16W 4K MIL On/Off (EL10820663) — Specification sheet
More from Esylux
Esylux
Esylux Replacement Lithium-Ion Battery Pack for SLP-2 Handheld Floodlight
EN10061127
Esylux

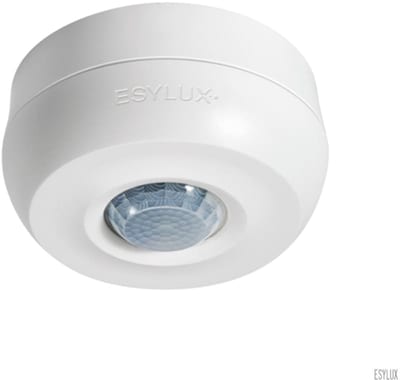

MD 360I/8 Basic SMB white
EB10430466
Esylux

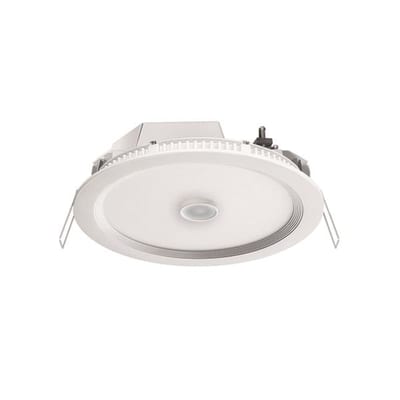

ELSA-2 225 OP 840 MD PS DALI
EO10299667
Esylux

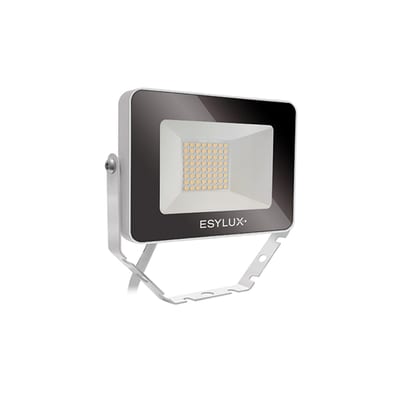

OFL Basic 10 W 3 K WH
EL10810787
Esylux

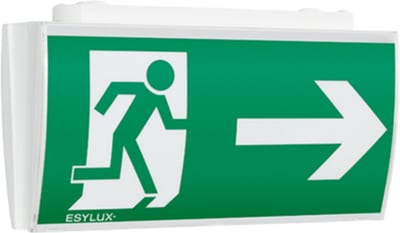

SLF LEDi SC/C Surface-mounted
EN10061837
Esylux

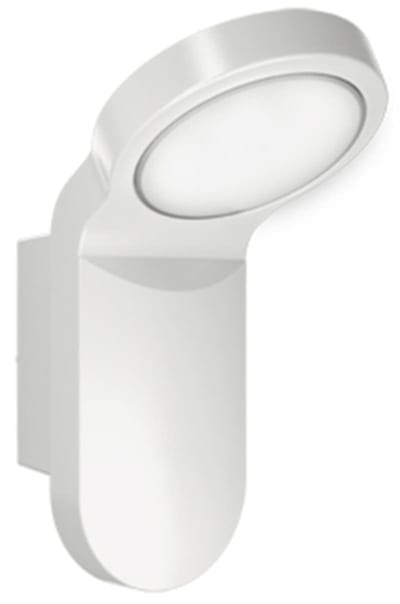

OL 100 LED 5K white (EL10710001)
Esylux

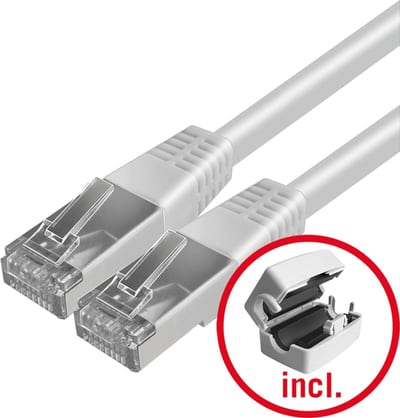

Cable SAT RJ45 5M X4
EC10431906
Esylux

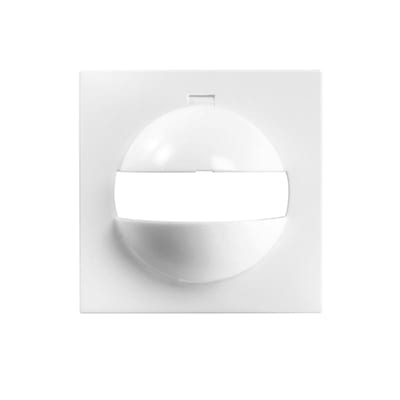

Enclosure IP20-EXX2 white
