Esylux

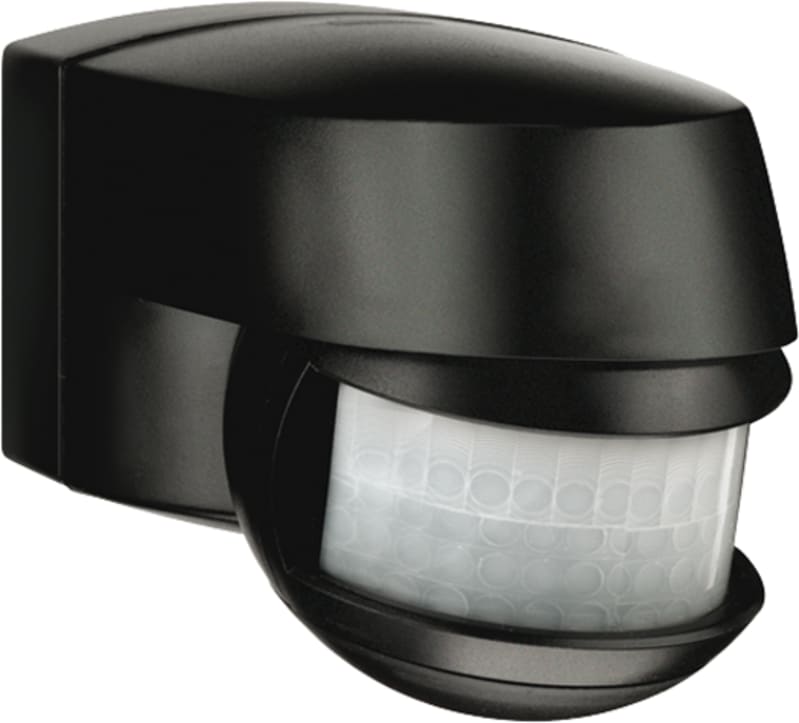

MD 120 black (EM10025235)
Part numberEM10025235EAN / GTIN4015120025235HS code8536.50
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux EM10025235 Motion detectors 120°.
Technical Specifications
- Manufacturer part number (MPN)
- EM10025235
- EAN / GTIN
- 4015120025235
- Sales unit
- pcs
- Package quantity
- 48 pcs
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- Black
- Width
- 74 mm
- Model
- Movement sensor
- Halogen free
- No
- Height
- 81 mm
- Depth
- 102 mm
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Frequency
- 50 Hz
- With remote control
- No
- Suitable for wall mounting
- Yes
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 5 m
- Max. reach sideways
- 12 m
- Max. switching power
- 1000 W
- Temperature
- -25–55 °C
- Max. starting current
- 30 A
- Material
- Plastic
- Ambient temperature
- -25–55 °C
- Response value sensitivity adjustable
- No
- Dim function with dimmer basic element
- No
- Response value luminosity
- 10–2000 lx
- Suitable for C-load
- Yes
- Diameter reach on floor
- 12 m
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- No
- Substation input
- No
- RAL-number (similar)
- 9005
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- No
- Scan angle
- 120 °
- With connection cable
- No
- Degree of protection (IP)
- IP44
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Detection angle horizontal
- 60–120 °
- Min. switch-on time
- 10 s
- Max. duty cycle
- 15 min
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 2.5 m
- Pivoting range sensor, horizontal
- 0–90 °
- Pivoting range sensor, vertical
- 0–60 °
- Number of switching zones
- 1
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 250 W
- Compatible with Casambi
- No
- Background monitoring
- No
- With acoustic sensor
- No
- Movement sensor/presence detector technology
- Passive infrared
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- No
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015120025235
- SAP 1000070022
- Code 8757078
Product Documentation
Document preview: MD 120 black (EM10025235) — Specification sheet
