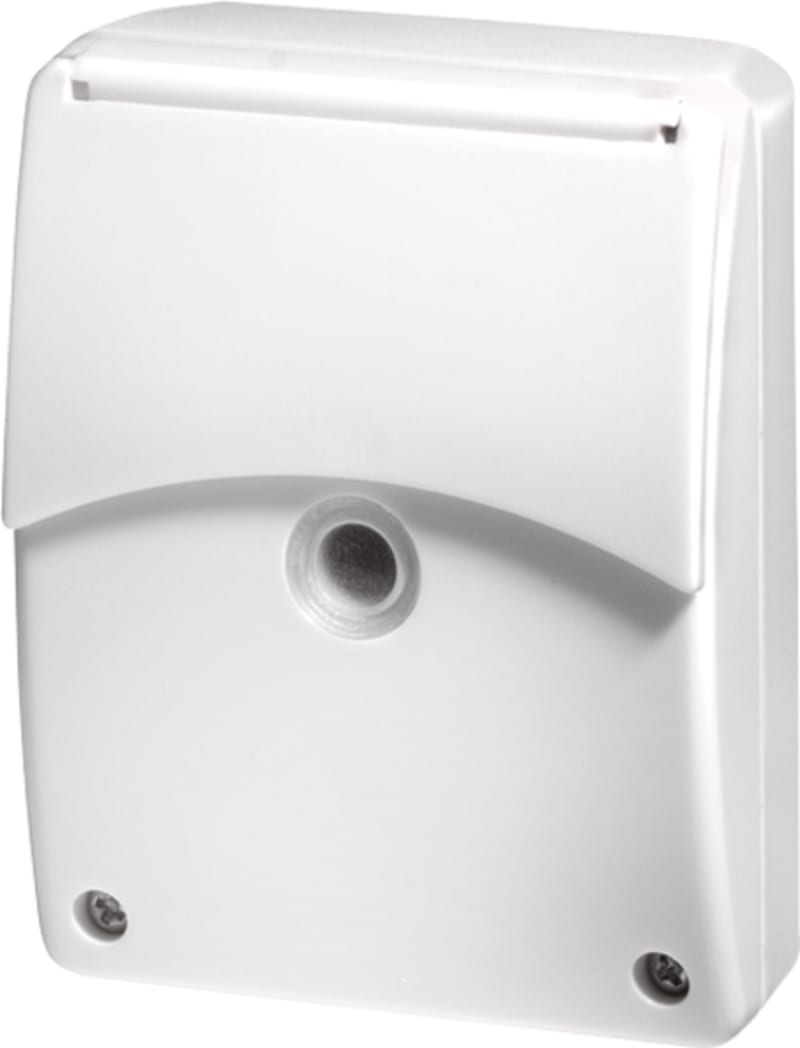

Esylux CDS-A/N Surface-Mounted Twilight Switch IP54 White
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux ED10016530 is a surface-mounted twilight (photocell) switch for automatic outdoor and semi-outdoor lighting control. Rated 230 V / 10 A resistive with a switching threshold adjustable from 5 to 300 lx and 60 s switch-on and switch-off delays, it houses a built-in light sensor in an IP54 white enclosure. Typical applications include facade, entrance and yard luminaires.
Technical Specifications
- Manufacturer part number (MPN)
- ED10016530
- EAN / GTIN
- 4015120016530
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 72 pcs
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- White
- Width
- 76 mm
- Halogen free
- No
- Contacts
- 1 make contact (NO)
- Height
- 52 mm
- Depth
- 96 mm
- Surface protection
- Untreated
- Switching-on delay
- 60 s
- Switch-off delay
- 60 s
- Swivelling
- No
- Material quality
- Thermoplastic
- Max. switching current (resistive load)
- 10 A
- Max. switching power
- 2300 W
- Operating temperature
- -25–55 °C
- Material
- Plastic
- Switching-off brightness
- 5–300 lx
- Suitable for C-load
- No
- Engaging brightness
- 5–300 lx
- RAL-number (similar)
- 9010
- Type of sensor
- Built-in light sensor
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP54
- With automatic night switch-off
- No
- With DALI interface
- No
- IFTTT support available
- No
- Min. depth of built-in installation box
- 0 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015120016530
- SAP 1000023653
- Code 8183403
Product Documentation
