Esylux
PD-C 360I/24 DUO DALI Wieland GST18
Part numberEP10427374EAN / GTIN4015120427374HS code9031.49
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

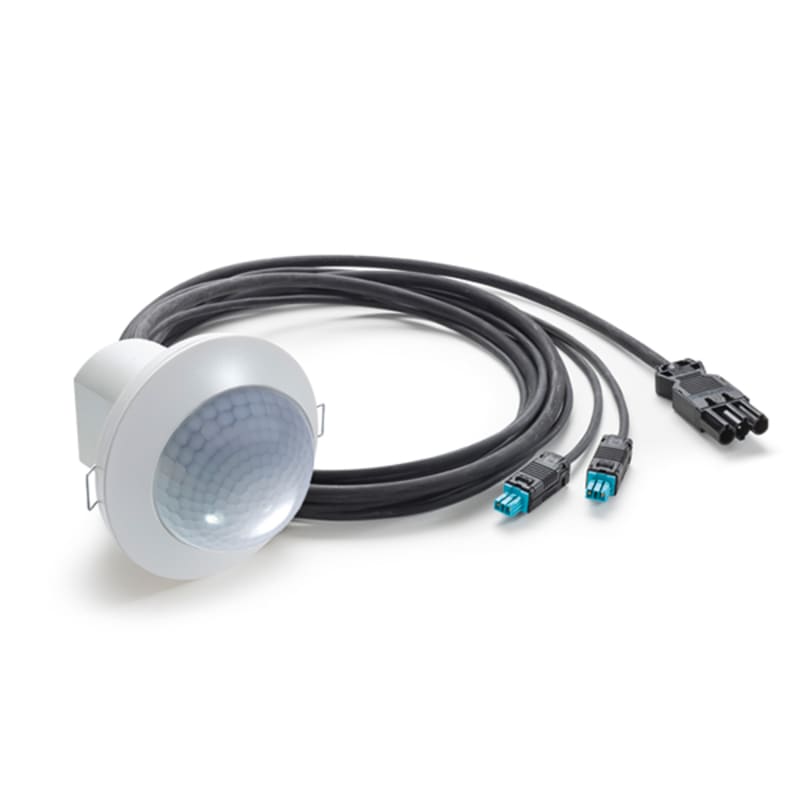

Esylux EP10427374 Presence detector with 360° detection range for ceiling mounting.
Technical Specifications
- Manufacturer part number (MPN)
- EP10427374
- EAN / GTIN
- 4015120427374
- Sales unit
- pcs
- Background monitoring
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Suitable for ceiling mounting
- Yes
- Compatible with Casambi
- No
- Connection cable length
- 2000 mm
- With acoustic sensor
- No
- With connection cable
- Yes
- Voltage supply over bus
- Yes
- Suitable for wall mounting
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- DALI
- Radio frequency bidirectional
- No
- Model
- Presence detector
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- White
- RAL-number (similar)
- 9010
- Transparent
- No
- With bus connection
- No
- Creep-under protection
- No
- Operation mode switch
- Yes
- Animal zone
- No
- Staircase light controller
- Yes
- Response value luminosity adjustable
- Yes
- Teach-function for response value luminosity
- Yes
- Switch-off delay self-learning
- No
- DALI-2 certified
- No
- Optimum mounting height
- 3 m
- Max. reach sideways
- 12 m
- Max. reach frontally
- 5.5 m
- Diameter reach on floor
- 24 m
- Number of channels
- 4
- Min. switch-on time
- 60 s
- Max. duty cycle
- 240 min
- Min. depth of built-in installation box
- 90 mm
- Height
- 108 mm
- Built-in depth
- 90 mm
- Diameter
- 108 mm
- Built-in diameter
- 68 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9031.49
Cross References
- EAN 4015120427374
- SAP 1200647082
- Code 83066365
Product Documentation
Document preview: PD-C 360I/24 DUO DALI Wieland GST18 (EP10427374) — Specification sheet
More from Esylux
Esylux
MD-C 360I/24 BK (EP10055546)
Esylux
Driver-SET TW 32W 700MA RJ45 Winsta DT8
EQ10127830
Esylux
Driver-SET 30W 700MA RJ45 GST DALI-2
EQ10127816
Esylux
Driver-SET TW 32W 700MA RJ45 DALI-2 DT8
EQ10127847
Esylux
Arma Svenja CL 450 DDP OP 3100 830 DA-2
EO10850608
Esylux
Esylux CDS-A/N Surface-Mounted Twilight Switch IP54 White
ED10016530
Esylux
PD-FLAT 360I/8 round sv DALI
EP10427916
Esylux
Ball grille, emergency lighting, 440X260X230
EN10077296
