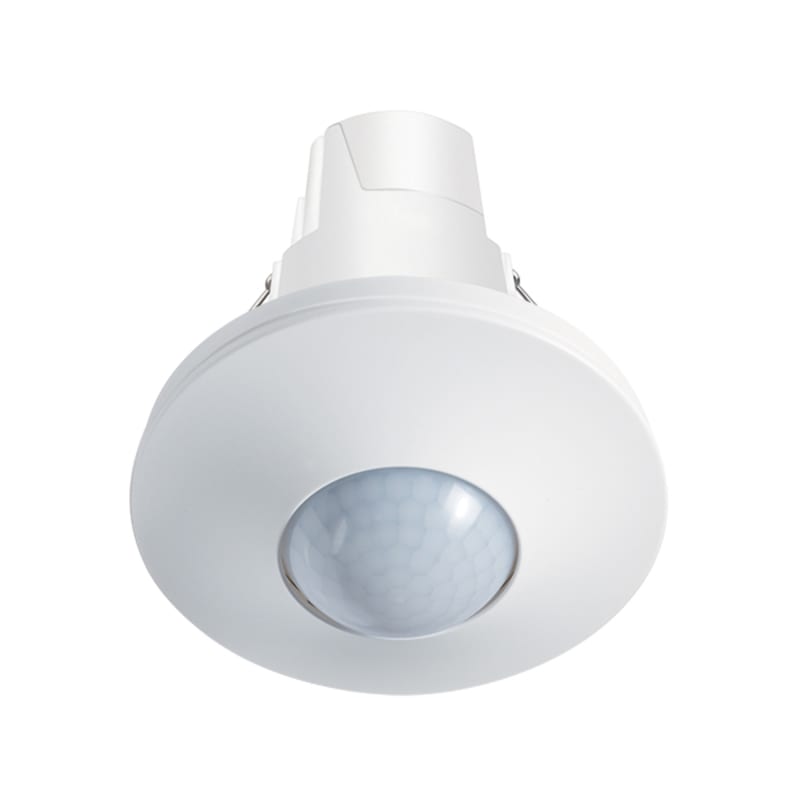

Esylux PD-C 360/8 APC20 PS+ DALI-2 Presence Detector
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux EP10428272 DALI-2-certified ceiling-mounted presence detector with integrated DALI-2 control unit and power supply (250 mA). Suitable for flush-mounted installation up to 3 m height with 8 m floor-diameter coverage. Includes staircase-light controller and adjustable luminosity response.
Technical Specifications
- Manufacturer part number (MPN)
- EP10428272
- EAN / GTIN
- 4015120428272
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Background monitoring
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Suitable for ceiling mounting
- Yes
- Compatible with Casambi
- No
- With acoustic sensor
- No
- With connection cable
- No
- Voltage supply over bus
- Yes
- Suitable for wall mounting
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- DALI
- Radio frequency bidirectional
- No
- Model
- Presence detector
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- White
- RAL-number (similar)
- 9010
- Transparent
- No
- With bus connection
- Yes
- Creep-under protection
- No
- Operation mode switch
- No
- Animal zone
- No
- Staircase light controller
- Yes
- Response value luminosity adjustable
- Yes
- Teach-function for response value luminosity
- No
- Switch-off delay self-learning
- No
- DALI-2 certified
- Yes
- Optimum mounting height
- 3 m
- Max. reach sideways
- 4 m
- Max. reach frontally
- 3 m
- Diameter reach on floor
- 8 m
- Number of channels
- 1
- Min. depth of built-in installation box
- 80 mm
- Height
- 118 mm
- Built-in depth
- 80 mm
- Diameter
- 108 mm
- Built-in diameter
- 68 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9031.49
Cross References
- EAN 4015120428272
- SAP 1200527448
- Code 82677891
Product Documentation
More from Esylux
Esylux
Spacer Holder for BASIC-series, white
EB10423130
Esylux
Cable CABLE RJ11 10M WH
EC10431524
Esylux
Esylux ALVA 360° 540 mm 16 W 3000 K LED Bollard, Anthracite
EL10820106
Esylux
PD-C 360/24 DALI-2 (EP10428210)
Esylux
ESY-Pen (EP10425356)
Esylux
Cable CABLE RJ10 10M WH
EC10431500
Esylux
MD-FLAT 360I/8 round hv
EP10427886
Esylux
PD-C360i/24 Plus White
EP10425288
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
