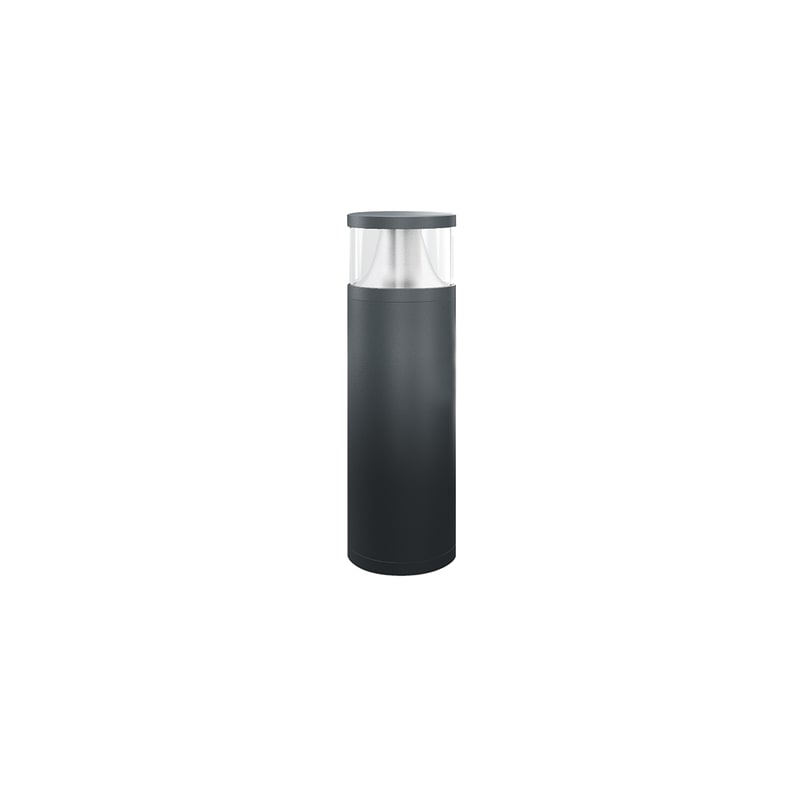

Esylux ALVA 360° 540 mm 16 W 3000 K LED Bollard, Anthracite
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux EL10820106 is an ALVA LED bollard luminaire with a 360° symmetric distribution, 540 mm height and 16 W total system power delivering 1270 lm at 3000 K. The high-quality aluminium housing with lotus-effect surface withstands salt-laden coastal air and is rated IP65 with IK10 impact strength. Typical use is pathway, garden and entrance lighting including coastal installations.
Technical Specifications
- Manufacturer part number (MPN)
- EL10820106
- EAN / GTIN
- 4015120820106
- Sales unit
- pcs
- Power
- 16 W
- Protection class according to IEC 61140
- I
- Height
- 540 mm
- Lamp holder
- None
- Conductor cross section
- 2.5 mm²
- With base plate
- Yes
- Connection type
- Push-in clamp
- Housing colour
- Grey
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Max. lamp power
- 15 W
- Suitable for lamp power
- 14.3 W
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Diameter
- 170 mm
- With light sensor
- No
- Number of poles
- 3
- Height/depth
- 540 mm
- Type of power supply
- Mains power supply
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Direct
- Light distribution
- Symmetric
- Material cover
- Plastic, transparent
- Impact strength
- IK10
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Beam angle
- > 80° - Extreme wide beam
- Nominal current
- 64–77 mA
- Max. system power
- 16 W
- Rated luminous flux according to IEC 62722-2-1
- 1270 lm
- Colour of light
- White
- Constant light output (CLO)
- No
- IFTTT support available
- No
- Type of wiring
- Suitable for loop-through wiring
- Rated lifetime L70/B50 at 25 °C
- 110000 h
- Rated life time L80/B10 at 25 °C
- 65000 h
- Rated life time L90/B10 at 25 °C
- 35000 h
- LED nominal current at constant current
- 340 mA
- Light distributor
- Diffuser lens/optic/panel
- Luminaire efficacy
- 79 lm/W
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- E
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Exchangeable control gear
- Yes
- Containing product according to 2019/2020/EU
- Yes
- Device emplacement
- Outdoor positioning
- Power factor
- 0.917
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 4015120820106
- SAP 1200039712
- Code 81641528
Product Documentation
More from Esylux
Esylux
PD-C 360/24 DALI-2 (EP10428210)
Esylux
ESY-Pen (EP10425356)
Esylux
Cable CABLE RJ10 10M WH
EC10431500
Esylux
MD-FLAT 360I/8 round hv
EP10427886
Esylux
PD-C360i/24 Plus White
EP10425288
Esylux
Bollard 18W 3K AN clear On/Off
EL10820007
Esylux
Tryckknapp 8X DALI Class
EC10431241
Esylux
PD-C360I/8 KNX UP (EP10427404)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy EL10820106?
- EL10820106 can be ordered from cballast.com as a Esylux catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Esylux product?
- The manufacturer part number is EL10820106.
- What is the HS code for EL10820106?
- The customs tariff (HS) code for EL10820106 is 9405.42.
- Who manufactures EL10820106?
- EL10820106 is a Esylux product in the Lighting & Electrical Accessories range.
- Is a datasheet available for EL10820106?
- Yes — the EL10820106 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for EL10820106?
- The minimum order quantity is 1.
- Is EL10820106 available?
- Yes — EL10820106 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
