Esylux

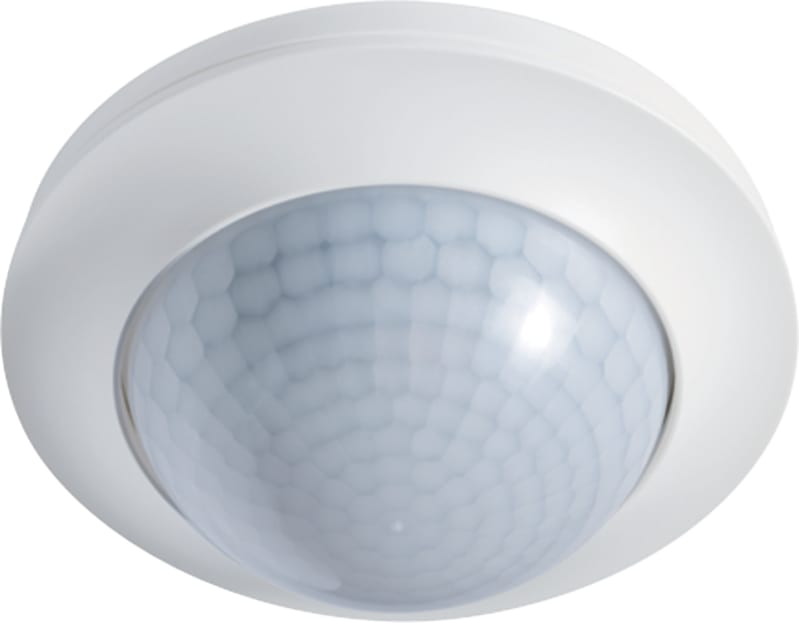

PD-C360i/24 Plus White
Part numberEP10425288EAN / GTIN4015120425288HS code8536.50
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux EP10425288 Ceiling-mounted presence detector for flush installation, 360°, HVAC channel, remote-controlled.
Technical Specifications
- Manufacturer part number (MPN)
- EP10425288
- EAN / GTIN
- 4015120425288
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- Presence detector
- Halogen free
- Yes
- Height
- 70 mm
- Depth
- 70 mm
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Switching-on delay
- 30 s
- Switch-off delay
- 300 s
- Built-in depth
- 24 mm
- Frequency
- 50 Hz
- With remote control
- No
- Diameter
- 108 mm
- Suitable for wall mounting
- No
- Built-in diameter
- 60 mm
- Staircase light controller
- No
- Bridging switch
- Yes
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 5.5 m
- Max. reach sideways
- 12 m
- Max. switching power
- 2300 W
- Temperature
- -25–50 °C
- Max. starting current
- 800 A
- Material
- Plastic
- Ambient temperature
- -25–50 °C
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 5–2000 lx
- Suitable for C-load
- Yes
- Diamete
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015120425288
- SAP 1000001662
- Code 816140
Product Documentation
Document preview: PD-C360i/24 Plus White (EP10425288) — Specification sheet
