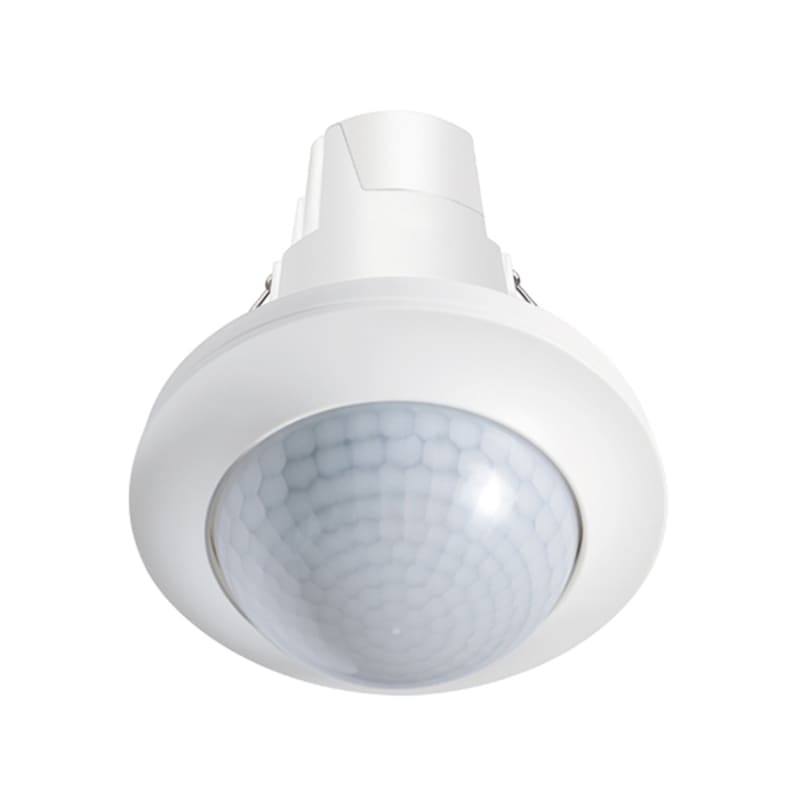

Esylux Presence Detector PD-C 360/24 APC20 PS+ DALI-2
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux EP10428111 is a DALI-2-certified, ceiling-mounted presence detector with an integrated DALI-2 control unit and 250 mA power supply. Flush-mounted in a thermoplastic housing, matt white finish (RAL 9010), with acoustic sensor absent and bus connection over DALI. Optimum mounting height 3 m; maximum sideways reach 12 m; frontal reach 5.5 m; floor detection diameter 24 m. Country of origin: Germany.
Technical Specifications
- Manufacturer part number (MPN)
- EP10428111
- EAN / GTIN
- 4015120428111
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Background monitoring
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Suitable for ceiling mounting
- Yes
- Compatible with Casambi
- No
- With acoustic sensor
- No
- With connection cable
- No
- Voltage supply over bus
- Yes
- Suitable for wall mounting
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- DALI
- Radio frequency bidirectional
- No
- Model
- Presence detector
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- White
- RAL-number (similar)
- 9010
- Transparent
- No
- With bus connection
- Yes
- Substation input
- Yes
- Creep-under protection
- No
- Operation mode switch
- No
- Animal zone
- No
- Staircase light controller
- Yes
- Response value luminosity adjustable
- Yes
- Teach-function for response value luminosity
- No
- Switch-off delay self-learning
- No
- DALI-2 certified
- Yes
- Optimum mounting height
- 3 m
- Max. reach sideways
- 12 m
- Max. reach frontally
- 5.5 m
- Diameter reach on floor
- 24 m
- Number of channels
- 1
- Min. switch-on time
- 60 s
- Max. duty cycle
- 240 min
- Min. depth of built-in installation box
- 80 mm
- Height
- 126 mm
- Built-in depth
- 80 mm
- Diameter
- 108 mm
- Built-in diameter
- 68 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9031.49
Cross References
- EAN 4015120428111
- SAP 1200150222
- Code 82040537
Product Documentation
